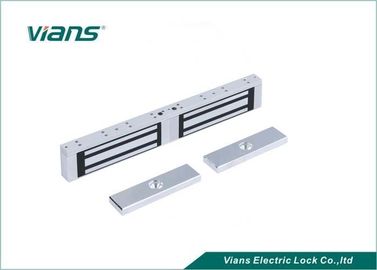

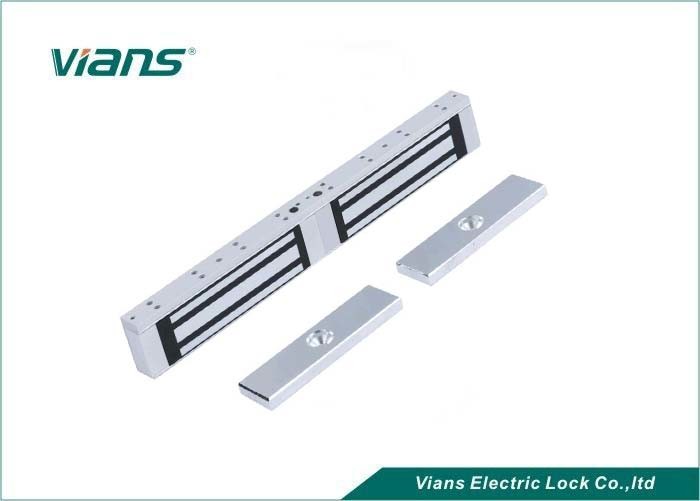

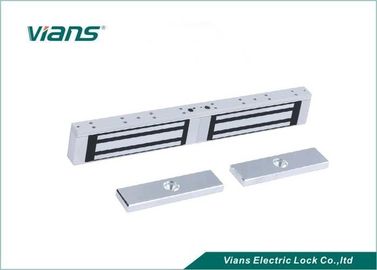

180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation

180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation

  • 180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation
  • 180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation
  • 180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation
180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-180BS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 340L*42W*21H(mm) Input Voltage: DC12V Or DC24V
Working Current: 12V/480mA 24V/240mA Lock Finish: Electroplated Zinc
Humidity: 0~90%(non-condensing) Operating Temp: -10~+55℃(14-131F)
High Light:

electromagnetic door lock

,

electric mag locks



180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation





Product Overview



The VIANS Electromagnetic lock is using the leading production equipment and packaging technology of the international. Produced the electromagnetic lock is not only higher than similar products by more than 20% of the lock holding force, but also the antioxidant capacity of the surface of magnetic lock is reached the international advanced level. Which are widely used in airports, subways, banks, prisons, intelligent buildings.




Feature





1. Collinear Load Test 180kg,350pounds.

2. Dual Voltage 12 or 24 VDC(optional).

3. The Standad Voltage is 12VDC when Finished.

4. MOV Provides Reverse Current Protection.

5. Anti-Residual Magneism Designed.

6. High Strength Material,Anodized Aluminum Housing.

7. Design with no Mechanical Bolt.

8. Increase the holding Force,Dual Insulative Hosing.

9. CECertificate by European Union,MA Certificate by China Public Security Office.



Specification



Product Parameter Parameter Description
Size 170L*42W*21H(mm)
Armature Plate Dimension 130L*33W*9H(mm)
Holding Force 180kg*2(350Lbs*2)
Input Voltage 12 or 24VDC
Current 12V/300mA or 24V/150mA
signal output Yes
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.4KG







Installation drawing

180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation 0

Product mounting bracket



180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation 1



Wiring



 180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation 2







Related Products







180KG 350 lbs access control door locks , double door electromagnetic lock Easy Installation 3





Electromagnetic Lock Trouble and Shooting





Troubles Cause Shooting
Door cannot lock

1. Circuitry malfunction or low voltage.

2. The power supply wire is too thin and long to cause big decrease of voltage.

3. Power supply is broken to cause no voltage output.

4. The positive and negative wire of power supply is connected in reverse.

5. The electromagnetic lock no power input.

1. Check the connection, and measure the voltage to see if it is normal.

2. Modify or change the power supply wire into thicker one.

3. Check the power polarity and correct the connection.

4. Check to see if power supply or controller is correctly connected to NC.Make sure to see up the controller correctly.

No transform of indicator output with low holding force.

1. The mount plate and the electromagnetic lock face not in complete close.

2. The mount plate is fixed to tight, no room to move.

3. The electromagnetic lock and the mounting plate not at same level for case the door is deformed or moved.

4. The surface of mount plate or electromagnetic lock is not clear.

5. The power supply with lower power.

6. The power supply wire is too thin and long.

7. The electromagnetic lock is malfunction.



1. Check the face of mount plate or electromagnetic lock, if the face of plate is deformed to cause no complete close to the lock, please change the plate.

2. Check if the rubber gasket is put into the stick of plate, and adjusts the bolt of plates not too tight at least a little movable.

3. Adjust the mount plate and electromagnetic lock to be level at each other and close completely.

4. Clean the surface of lock and plate, if rusted to cause no working please change the part.

5. Use millimeter to check the voltage and current of electromagnetic lock to see if it is normal, or need repairing or changing power supply.

6. Change into high quality power supply wire, better no more the 20 meters.

7. Repair or change the electromagnetic lock.

Door cannot open The power is not cut off To check out the connection of power supply and controller, the electromagnetic lock is power-on locking power-off opening type. The lock can be open once power off.
