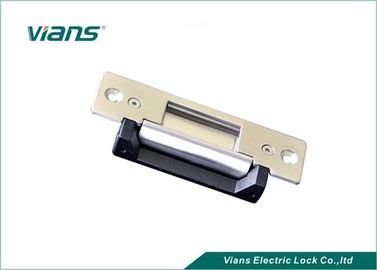

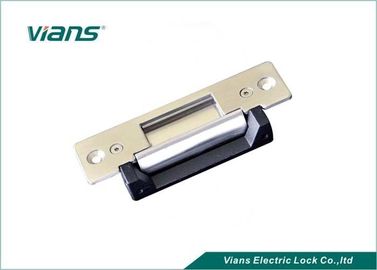

12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing

12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing

  • 12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing
  • 12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing
  • 12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing
12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-702
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 60 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T , , Paypal
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Brand: Vians & OEM Security Mode: Lock Or Open When Power Off
Input Voltage: DC12V±10% Working Current: 200mA
Warranty: 1year Replacement And 5 Years Warranty Door Type Applicable: Wooden,metal,PVC Door
High Light:

electric strike door lock

,

12v strike lock

Fail secure Electric Striker 12v electronic electric door strike for mortise lock swipe card locks signal output





Product Picture

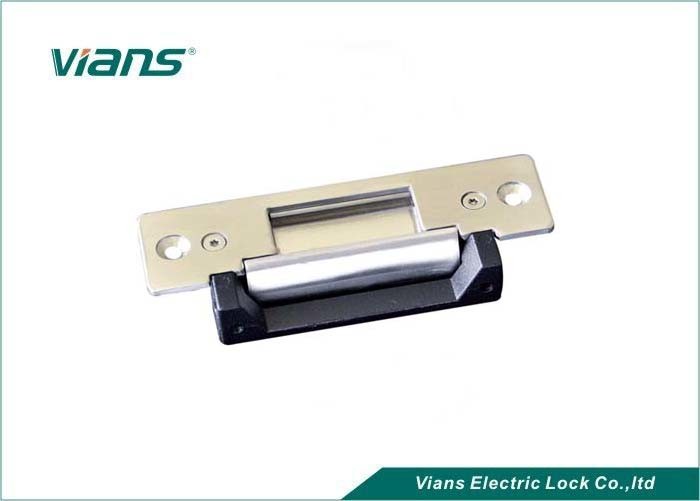

12v Fail Secure Electric Strike Lock Signal Output For Double Doors , Stainless Steel Housing 0



Product Parameter



Product Parameter Parameter Description
Lock Size 124Lx32Wx33H(mm)
Certificate CE/FCC/ROHS
Input Voltage DC12V±10%
Working Current 320mA
Opening Mode 90 Degree Swing Door
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay NO
Signal output NO
Security Type Locked when energized / open when energized
Opening Mode 90 Degree Swing Door
Contact Dry contact
Surface Temperature Within +20°C
Material of Housing Stainless steel
Weight 0.34kg


The electric strike has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long time working, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last, with hardness stainless steel material, our stike can bear 800kg impact pressure.








Product Feature



1. Bear 800kg impact pressure.



2. Special design, the lock bolt can adjust the distance.



3. It is especially suitable for the metal frame with hole for directly installation.



4. Pass the 500 000 times of aging test.



5. Products pass the CE, FCC and ROHS certification.
