| Place of Origin: | China |
| Brand Name: | Vians |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-806ST |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3-7 working days after received your payment |
| Payment Terms: | Paypal , , T/T |
| Supply Ability: | 3000pcs per month |
| Lock Size: | 148.5L*24.5W*39H(mm) | Strike: | 148.5L*24.5W*20H(mm) |
|---|---|---|---|
| Input Voltage: | DC12V±10% | Start Current: | 950mA |
| Working Current: | 80mA | Door Type Applicable: | Wooden Door , Glass Door ,Metal Door , Fireproof Door |
| Security Type: | Locked When Energized | Weight: | 0.86KG |
| Signal Output: | Yes | Time Delay: | Yes |
| High Light: | electric mortise lock,drop bolt lock |
||

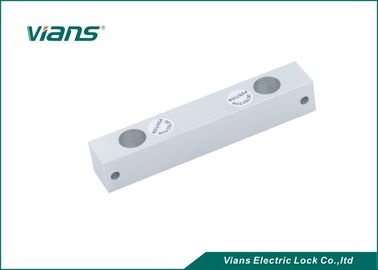

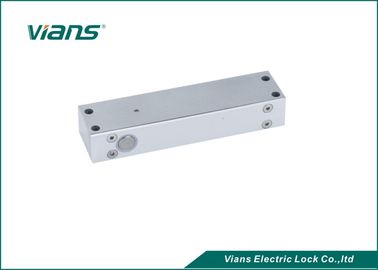

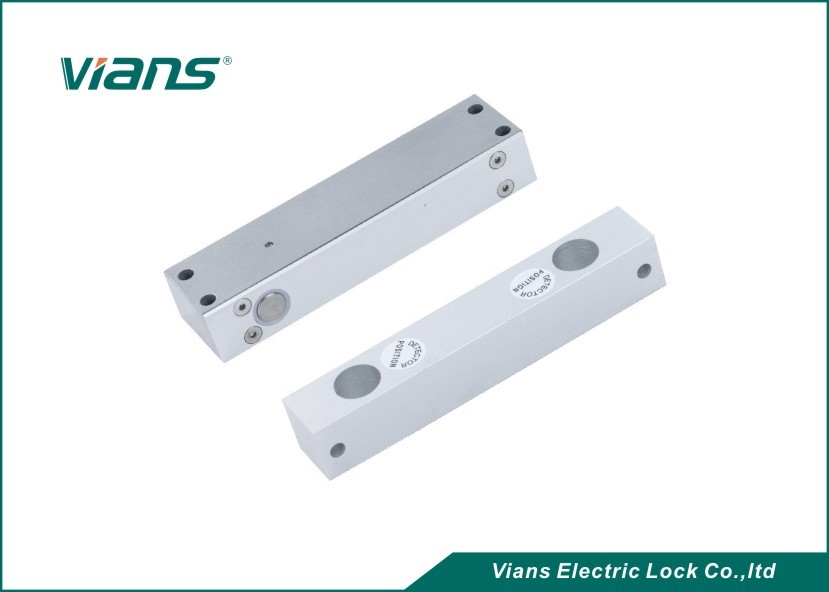

Access Security DCI2V Short Panel Signal Output Narrow Panel Electric Bolt Lock With Time Delay
Electric Bolt lock is kind of electric control locks,it works by means of extending or retracting the lock bolt with electric current.
Electric Bolt lock is designed mainly for glass door ,wooden door and metal door,it is suitable for bidirectional door and sliding door,becomes the best choice of access control automation management.
Technical Parameter
| Product Parameter | Parameter Description |
| Lock Size | 148.5L*24.5W*39H(mm) |
| Strike | 148.5L*24.5W*20H(mm) |
| Input Voltage | DC12V±10% |
| Start Current | 950mA |
| working Current | 80mA |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Security Type | Locked when energized |
| Weight | 0.86KG |
| Signal output | yes |
| Time delay | yes |
Products Feature
1. Photoelectric control technology, prevent mechanical failure.
2. Ultra-low temperature design, Safer and more durable.
3. Ultra-low-power design, More durable and more environmentally friendly.
4. More than 500 000 working times.
5. Built-in reverse current and prevention device (MOV).
6. Intelligent single chip configuration, three types current application.
7. High strength aluminum alloy lock body, stainless steel lock bolt.
8. Products pass the EU CE and china MA qualified certification.
Installation drawing
