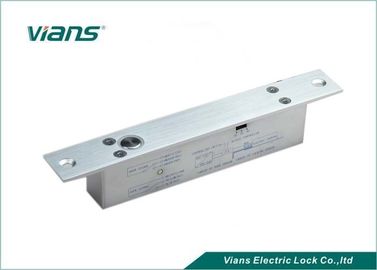

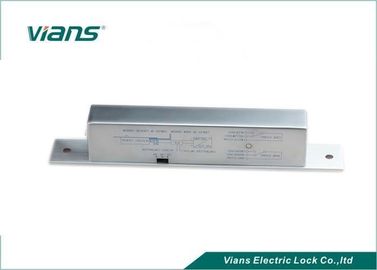

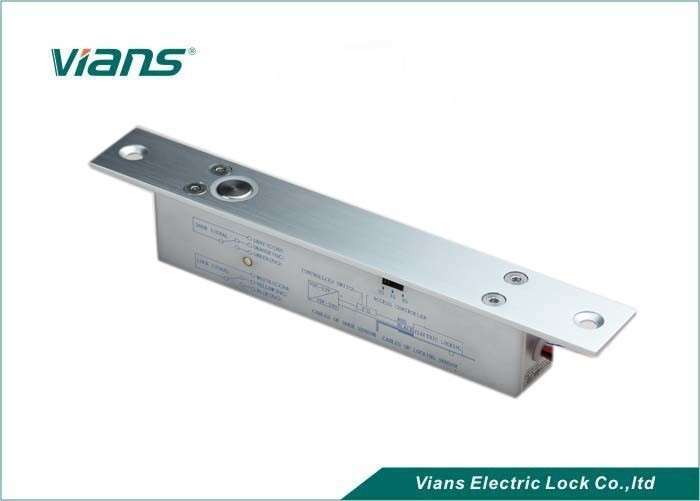

Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay

Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay

    • Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay
    • Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay
    • Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay
  • Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay

    Product Details:

    Place of Origin: China
    Brand Name: VIANS
    Certification: CE/ROHS/FCC/MA
    Model Number: VI-807ST

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: negotiation
    Packaging Details: 30 pcs/cartons
    Delivery Time: within 7 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Door Type Applicable: Wooden/Glass/Metal/Fireproof Door Face Plate: 200L*24.5W*39H(mm)
    Strike: 90L*25W*2H(mm) Voltage: 12VDC
    Start Current: 960mA Feature: Fail Secure Fail Safe
    Autolock Time Delay: 0,3,6,9sec
    High Light:

    sliding door bolt lock

    ,

    electric mortise lock

    Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay



    VI-807ST is in competitive price,with catch client's eyes beatuiful appearance,operate time delay by yourself,fail safe or fais secure,ultra-low temperature advantage.







    VI-807ST Features:



    1. The photoelectricity control technology, prevent machanical defect
    2. Low Power, safety and durable
    3. Low current, environmental protection
    4. Special photoelectricity control, three steps current application
    5. Long Life with 500000 operations
    6. MOV provides reverse current protection
    7. Superior strength aluminium alloy, solid stain-less steel bolt
    8. Autolock Time Delay: 0,3,6,9secs.
    9. Door statue signal output contact(NC.COM)
    10. Double protection for loading current
    11. Certificate: CE, MA
    12. Photoelectricity control, low temperature
    A:The low current is changed immediately
    B:When door frame doesn`t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
    C:The photoelectricity control technology, prevent the machanical defect.







    Product Parameter



    Product Parameter Parameter Description
    Lock Size 200Lx24.5Wx39H(mm)
    Strike Size 90Lx25Wx2H(mm)
    Input Voltage DC12V±10%
    Start Current 950mA
    Working Current 80mA
    Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
    Time Delay 0,3,6,9sec
    Signal output YES
    Security Type Locked when energized
    Weight 0.72KG



    Features:


    Secure mode: The door will lock while supplied with power, and unlock without power.


    Especially suitable for glass doors.


    It is made from durable and high aluminium alloy material, durable for use.


    Special circuit design, the door will unlock until the power is cut off.


    With no external interference, making it more stable and safer.





    Installation drawing





    Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay 0

    Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay 1
    Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay 1Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay 1

    Fail safe Fail Security Electric Drop Bolt Lock , Narrow Panel electric cabinet lock with Time Delay 4
