Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-808ST
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 30 pcs/cartons
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Solid Bolt: Polishing Housing, 1000kg Holding Force Suitable For: 12mm Electric Bolt For Fully Frameless Glass Door
Signal Output: Door Status Output,NC/COM Surface Temp: Low Temperature
Start Current: 950mA Working Current: 80mA
High Light:

electric mortise lock

,

drop bolt lock

Full Frameless Glass Door Lock,Electric Drop Bolt Lock With Signal And Timing​

Full Frameless Glass Door Electric Drop Bolt For Gates , FCC MA Certification 0

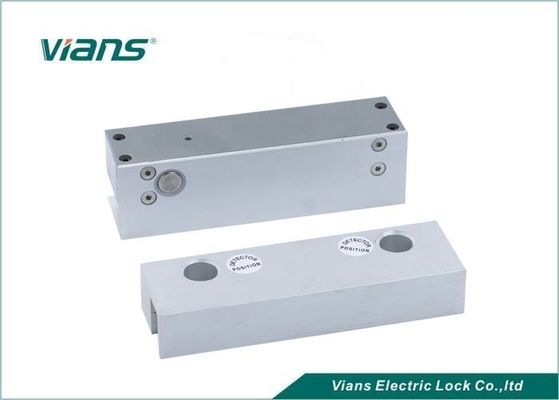

VI-808ST is an all-metal construction electric bolt .specially designed for fully frameless glass doors. It



can be worked bear the temperature of 60 ℃ or -20 ℃ The bolt of the lock is made of 304 stainless steel



solid bar with 1000kg holding force and anti-burglar design. With the multiple designs of durable magnetic



valve, special photoelectric control system,Door statue signal output contact,ultra-low



temperature and power consumption design, anti-intrusion and smart circuit.




Advantage of the products





> Low Temperature, safe and Durable.

> Low Power, Environmental Protection.

> Special photoelectricity control,three steps current application.

> Long Life with 500000 cycles.

> MOV Provides Reverse Current Protection.

> Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

> Autolock Time Delay: 0,3,6,9sec.

> Door statue signal output contact(NC.COM).

> Double protection for loading current.

> Auto-relock if no Action within 5 secs.

> Certificate:CE and MA.

> Photoelectricity Control,Low Temperature,

>A:The Low Current is Changed immediately;

>B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.

>C:The Photoelectricity Control Technology,prevent the machanical defect.





Product Parameter



Product Parameter Parameter Description
Lock Size 148Lx43Wx39H(mm)
Strike Size 148Lx43Wx25H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 80mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay 0,3,6,9sec
Signal output YES
Security Type Locked when energized
Weight 1.6KG





Features:


Secure mode: The door will lock while supplied with power, and unlock without power.


Especially suitable for glass doors.


It is made from durable and high aluminium alloy material, durable for use.


Special circuit design, the door will unlock until the power is cut off.


With no external interference, making it more stable and safer.





Installation drawing



Full Frameless Glass Door Electric Drop Bolt For Gates , FCC MA Certification 1



Full Frameless Glass Door Electric Drop Bolt For Gates , FCC MA Certification 2
Full Frameless Glass Door Electric Drop Bolt For Gates , FCC MA Certification 2Full Frameless Glass Door Electric Drop Bolt For Gates , FCC MA Certification 2

Full Frameless Glass Door Electric Drop Bolt For Gates , FCC MA Certification 5
