|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||30 pcs/cartons|
|Delivery Time:||7 working days after received your payment|
|Payment Terms:||T/T or|
|Supply Ability:||3,000pcs per month|
|Lock Size:||205 L X 35 W X 40 H(mm)||Strike:||90 L X 25 W X 2 H (mm)|
|Mounting Bracket:||VI-800L/VI-800U||Input Voltage:||DC12V (24V Need To Customized)|
|Working Current:||110mA||Application Door:||Metal Doors, Wooden Doors, Fireproof Doors, Glass Door|
|Security Type:||Locked When Energized||Signal Output:||YES|
electric mortise lock,
drop bolt lock

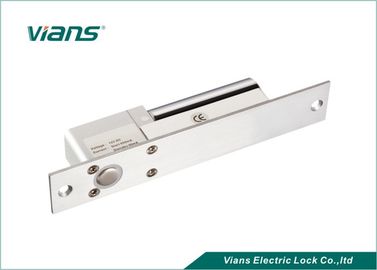

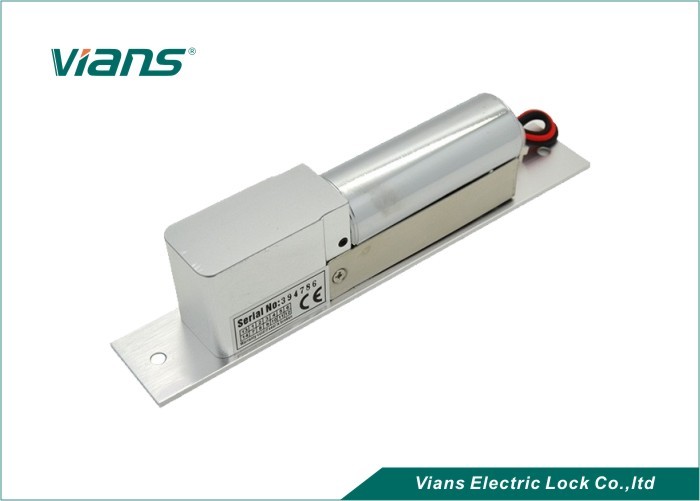

Time Delay Sliding Door Electric Drop Bolt Lock With Singal Output, Electric Dead Bolt Lock
1. Suitable for all kind of the door
2. With low power, environmental protection
3.Time delay function: 0/3/6/9sec
4. Operating voltage: 12VDC +10% range
5. Starting current: 1200mA (start the moment)
6. Current:120mA (fully locked)
7. Cylinder strength: Hardened stainless steel solid lock core,under 1000kg pressure
8. Select door type: wooden doors, glass doors, metal doors, fire doors
9. Signal output: Door state signal output NO, NC, COM contacts
10. Lock body surface temperature: low temperature
11. Door magnetic induction distance: 8mm (only used reed all U.S. imports)
12. Use the ambient temperature: -10°C-55°C (14 ~ 131F)
13. Use environment humidity: 0 ~ 90% relative humidity
14. Electric locking and durable design: design professional magnetic materials, 50 million times durability
Electric Bolt Advantages:
Low Temperature, safe and Durable.
Low Power, Environmental Protection.
Special photoelectricity control
Long Life with 500,000 Operations.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.
Double protection for loading current.
Photoelectricity Control, Low Temperature:
A:Low Electric Current changes immediately;
B:When door frame doesn't coincide with door leaf, door leaf against the bolt, the electric bolt will start the low-power function to bring low temperature.
C:Photoelectricity Control Technology, prevent mechanical defect
|Product Parameter||Parameter Description|
|Door Type Applicable||Wooden door , Glass door ,Metal door , Fireproof door|
|Security Type||Locked when energized|
Here is our bolt lock series, Any questions Welcome contact us.
We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China very
year, welcome you come to visit us :)
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
For mor informations. Please send us your detail inquiry. VIANS Looking forward to offer our high
products with best service to you!
