|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||30 pcs/cartons|
|Delivery Time:||7 working days after received your payment|
|Payment Terms:||T/T or|
|Supply Ability:||3,000pcs per month|
|Face Plate:||200L*25W*38H(mm)||Strike:||90 L*23W*2.5H(mm)|
|Signal Output:||NO /NC/COM||Time Delay:||0/3/6/9 Sec|
|Voltage:||12V DC||Current:||Start 950mA, Standby 150mA|
|Fail Secure:||Fail Safe And Fail Secure (Option)||Weight:||1.6KG|
sliding door bolt lock,
drop bolt lock

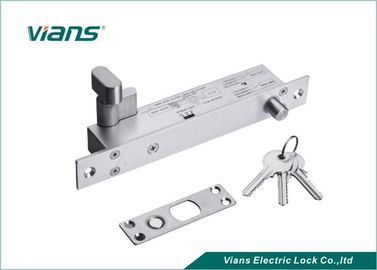

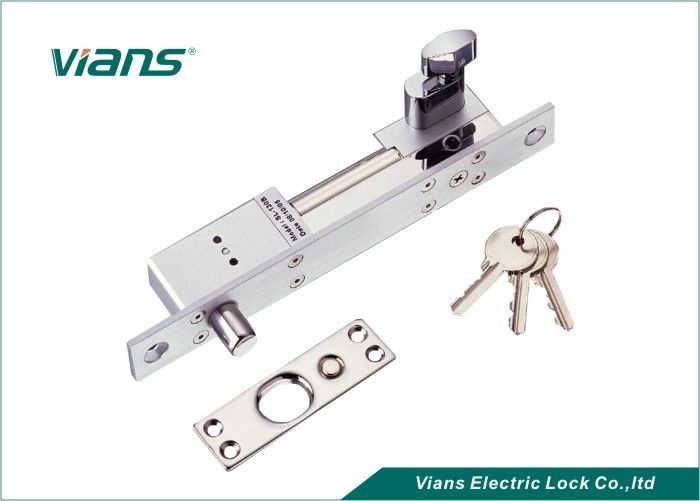

Fail Secure Electric Bolt Lock With Cylinder, Electric Drop Bolt Lock With Key
VIANS VI-810ST is Adjustable fail-safe (power to lock) or fail-secure (power to open).
Adjustable fail-safe (power to lock) or fail-secure (power to open).
Adjustable to fail-secure (power to open) for high security places. Adjustable to fail-safe (power to lock) for public places.
Built-in door open or door close state detection output point (250mA: N.C./ N.O.).
Suitable for 180° door.
Stainless steel bolt is able to sustain more than 800 kg of shear force.
Adjustable to fail-secure (power to open) to achieve long unlock state function.
Built-in oval cylinder as unlocking device. Use of oval cylinder to unlock when power cut occurred or during emergency.
Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.
Operation temperature: 0~90℃; Humidity: 85%Rh max.
|10||Dimensions:||Body: 200mm(L) x 25mm(W) x 38mm(D)
Strike plate : 90mm(L) x 23mm(W) x 2.5mm(D)
Bolt : 16mm(Throw) x 12.7mm(Diameter)
|Product Parameter||Parameter Description|
|Strike Size||90L*23 W*2.5H(mm)|
|Bolt||16MM X 12.7MM|
|Door Type Applicable||Wooden door , Glass door ,Metal door , Fireproof door|
|Security Type||Key Open available|
Photoelectricity Controling,no machanical defect.
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Long Life with 500000 cycles.
MOV Provides Reverse Current Protection.
Special photoelectricity control,three steps current application.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Working with cylinder cannot be copied,do increase security.
The humanized design of Led helps to indicate the working status of lock.
The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.
With complete accessories,available for any doors.
Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
Install At The Side Of The Door
Here is our bolt lock series, Any questions Welcome contact us.
