|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Packed in carton|
|Delivery Time:||3-7 working days after received your payment|
|Payment Terms:||T/T or|
|Supply Ability:||3,0000pcs per month|
|Lock Size:||80L*41W*25H(mm)||Armature Plate Dimension:||70L*33W*9H(mm)|
|Holding Force:||60kg(120Lbs)||Input Voltage:||DC12V Or DC24V|
|Working Current:||12V/220mA 24V/190mA||Operating Temp:||-10~+55℃(14-131F)|
|Signal Output:||No||Suitable:||Cabinets Drawer|
|Security Type:||Power Off To Open||Weight:||0.5kg|
electromagnetic door lock,
electric mag locks

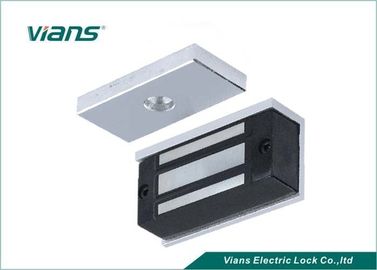

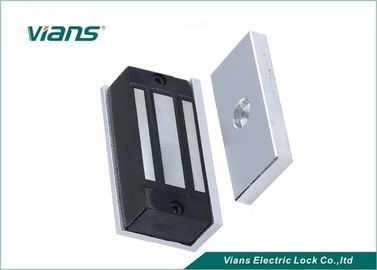

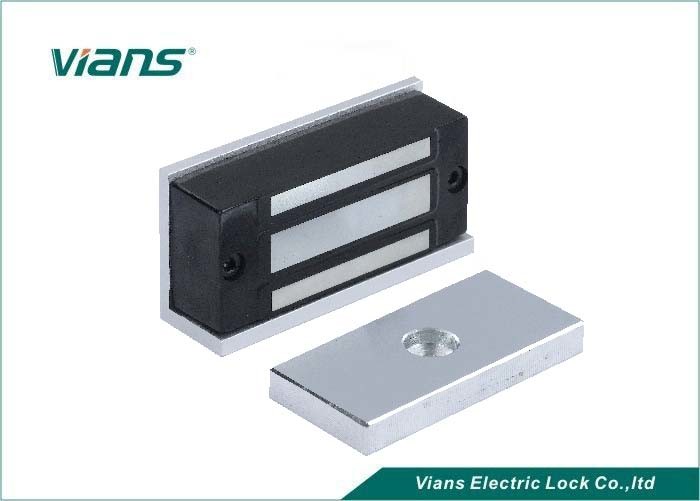

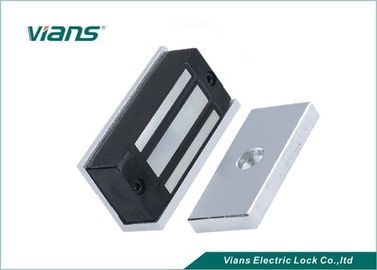

DC12V 60KG Single Door Magnetic Lock UL Certificate For Cabinet Drawer
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Inbuilt dry contacts lock status signal output ( NO,NC,COM),door status signal output ( NO,NC,COM) is the main selling point.
|Product Parameter||Parameter Description|
|Armature Plate Dimension||70L*33W*9H(mm)|
|Input Voltage||12V DC|
|Signal type output||Door status +Lock status signal|
|Armature Plate Finish||Zinc|
Product mounting bracket
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
