Home ProductsElectric Magnetic Lock

600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door

600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door

  • 600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door
  • 600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: UL/CE/FCC/ROHS
Model Number: VI-280BS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 30PCS/CARTON
Delivery Time: 3-7 Working days
Payment Terms: T/T, ,PAYPAL
Supply Ability: 20000PCS/MONTH
Contact Now
Detailed Product Description
Brand Name: Vians Lock Size: 500L*47W*26H(mm)
Armature Plate: 180L*38W*11H(mm) Input Voltage: DC12V/DC24V(adjustable)
Door Signal: No Lock Signal: Yes
Working Current: 300mA*2/150mA*2 Mounting Bracket: VI-280L/280U/280ZL
Door Type: Wooden/Glass/Metal/Fireproof
High Light:

600LBS Electric Magnetic Lock

,

DC24V Electric Magnetic Lock

,

600LBS electromagnetic door lock

600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door



Double Refrigerator Door Electric Magnetic Lock with signal output



VI-280BS Double door electric magnetic lock for intelligent home,Compared with other competitors, our maglocks has below advantages:The holding force is more than 20% compared with other manufacturers; The coil of our magnetic lock is pour copper not copper-clad aluminum; Shell is made of high-strength aluminum alloy; The special design to protect the PCB of magnetic lock moisture proof; Built-in reverse current protection device(MOV).



We are one of the Top 3 factories in this industry.  Our most hot selling product is mag lock. We are now a mag lock supplier for many companies in China and abroad. I think one of the reasons they choose us is that they could see the quality from our high holding force. We can ensure our holding force at a high level. Take 280kgs mag locks for example, its holding force is from 260kg to 280kgs. That's mostly because not only we use high quality silicon sheet material and pure copper coils, but also, we add a special process to silicon sheet. That would improve its property to generate a higher holding force.



Product Description
Model No
TK-280BS
Lock Size
500L*47W*26H(mm)
Armature Plate
180L*38W*11H(mm)
Input Voltage
DC12V/DC24V(adjustable)
Door Signal
NO
Lock Signal
YES
Working Current
300mA*2/150mA*2
Mounting Bracket
TK-280L/280U/280ZL
Certificate of quality
CE/FCC/ROHS/UL
Door Type Applicable
Wooden/Glass/Metal/Fireproof
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 0
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 1
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 2
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 3
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 4
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 5

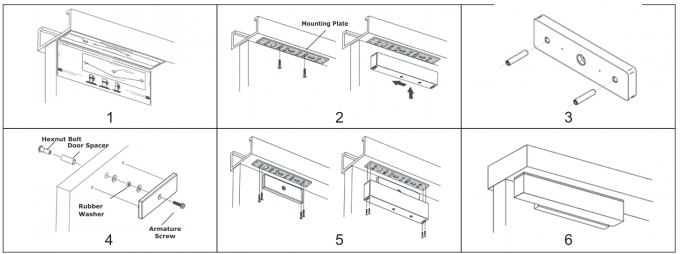

Standard Mounting Method

280KG/600LBS Double Door Electric Magnetic EM Lock with LED for Door Access Control VI-280BS

Our factory has been in this industry for more than 14 years. Thanks for the trust of all of our customers, we have developed rapidly in the last ten years. Now we have succeeded in gained UL mark for some of our product. UL has approved the quality of our factory and products. Our products are strictly according to UL standard. Bellow is the screenshot from UL official website, and you can also check by yourself on UL official website.

600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 7
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 8
600LBS Double Holding Force Electric Magnetic Lock For Refrigerator Door 9
FAQ

Q:Are you a trading company or a manufacturer?

A: We are a manufacturer in Shenzhen,Guangdong, China expertised in smart lock for over 13 years.

Q: Can I get a catalogue of your door lock?

A: Yes. Please send us a message or request in the form below.
We will e-mail our comprehensive brochure in PDF to you very soon.

Q: Can I have our own logo on product and packing?

A: Yes. We can imprint or laser the logo on product, and can print/sticker the logo on packing as well.

Q:When is your delivery date?

A: The delivery time is about 3-5 days after receiving the payment.

Q: What kind of transportation will you choose to dilivery the goods?

A: We support various transportation like post, express, by air or by sea.
