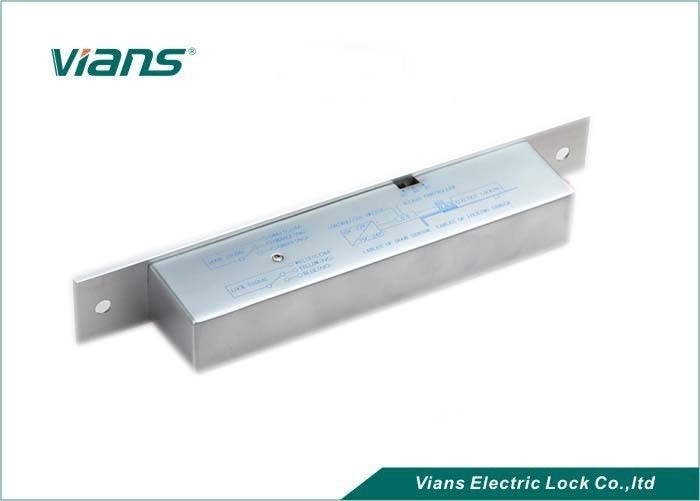

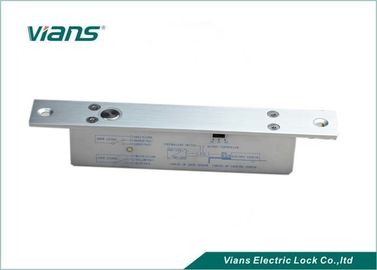

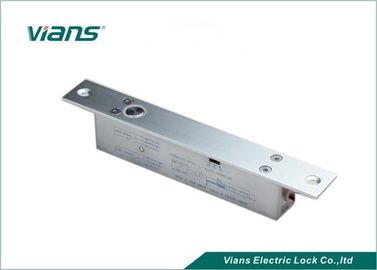

Narrow Panel Electric Bolt Lock Time Signal 200 * 24.5 * 39mm For Glass Door

Narrow Panel Electric Bolt Lock Time Signal 200 * 24.5 * 39mm For Glass Door

  • Narrow Panel Electric Bolt Lock Time Signal 200 * 24.5 * 39mm For Glass Door
  • Narrow Panel Electric Bolt Lock Time Signal 200 * 24.5 * 39mm For Glass Door
  • Narrow Panel Electric Bolt Lock Time Signal 200 * 24.5 * 39mm For Glass Door
Narrow Panel Electric Bolt Lock Time Signal 200 * 24.5 * 39mm For Glass Door
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-807ST
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 30 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Face Plate: 200L*24.5W*39H(mm) Signal Output: Yes
Input Voltage: DC12V±10% Start Current: 960mA
Standby Current: 110mA Feature: Fail Secure
Autolock Time Delay: 0,3,6,9sec Weight: 0.72KG
High Light:

electric mortise lock

,

drop bolt lock

Narrow Panel Electric Bolt Lock With Time Signal For Glass Door



Electric Bolt lock was designed mainly for glass door, wooden door and metal door, it is suitable for bidirectional door and sliding door, it is also the best choice for access control automation management.



Features:



1. The photoelectricity control technology, prevent machanical defect
2. Low Power, safety and durable
3. Low current, environmental protection
4. Special photoelectricity control, three steps current application
5. Long Life with 500000 operations
6. MOV provides reverse current protection
7. Superior strength aluminium alloy, solid stain-less steel bolt
8. Autolock Time Delay: 0,3,6,9secs.
9. Door statue signal output contact(NC.COM)
10. Double protection for loading current
11. Certificate: CE, MA
12. Photoelectricity control, low temperature
A:The low current is changed immediately
B:When door frame doesn`t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C:The photoelectricity control technology, prevent the machanical defect.







Product Parameter



Product Parameter Parameter Description
Lock Size 200Lx24.5Wx39H(mm)
Strike Size 90Lx25Wx2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 80mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay 0,3,6,9sec
Signal output YES
Security Type Locked when energized
Weight 0.72KG



Features:


Secure mode: The door will lock while supplied with power, and unlock without power.


Especially suitable for glass doors.


It is made from durable and high aluminium alloy material, durable for use.


Special circuit design, the door will unlock until the power is cut off.


With no external interference, making it more stable and safer.
