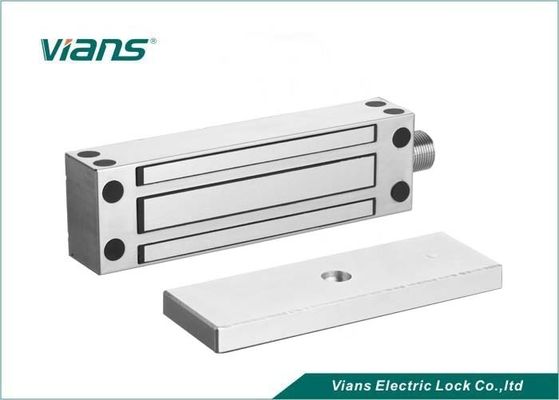

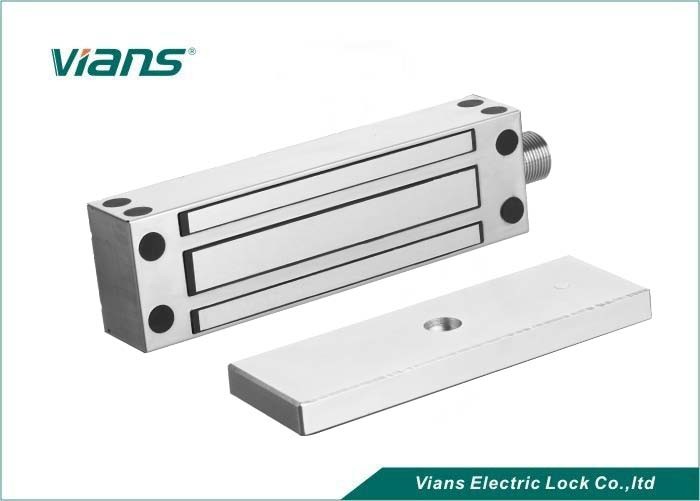

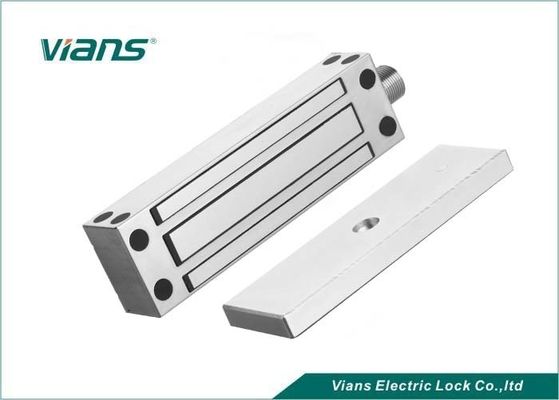

Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe

Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe

  • Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe
  • Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe
  • Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe
Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-500ASW
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 240L*63.5W*43H(mm) Holding Force: 500kg(1200Lbs)
Input Voltage: DC12V Or DC24V Working Current: 12V/600mA 24V/300mA
Security Type: Power Off To Open Waterproof: YES
Operating Temp: -10~+55℃(14-131F)
High Light:

1200lbs Electric Magnetic Lock

,

1200lbs ElectricMagnetic Lock

,

500kg Electric Magnetic Lock

Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe



Fail Safe Waterproof vians 1200lbs Electric Magnetic Lock with UL





Specification



Product Parameter Parameter Description
Size 240L*63.5W*43H(mm)
Armature Plate Dimension 185L*60W*13H(mm)
Holding Force 500kg(1200Lbs)
Input Voltage 12 or 24VDC
Current 12V/460mA or 24V/220mA
signal output YES
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 4.5KG







Feature

  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire
  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized.
  • Dual Voltage 12 or 24 VDC(optional).



All sealed internal components

All open area suitable for outdoor use



500kg to adopt sealed waterproof design within the magnetic locks,waterproof and internal components

with strong glue rain,stable and durable,suitable for use in harsh outdoor envirment.

Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe 0



Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe 1

Installation drawing

Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe 2

Product mounting bracket



Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe 3



Wiring



 Waterproof Vians 1200lbs Electric Magnetic Lock With UL Fail Safe 4







Electromagnetic Lock Trouble and Shooting





Troubles Cause Shooting
Door cannot lock

1. Circuitry malfunction or low voltage.

2. The power supply wire is too thin and long to cause big decrease of voltage.

3. Power supply is broken to cause no voltage output.

4. The positive and negative wire of power supply is connected in reverse.

5. The electromagnetic lock no power input.

1. Check the connection, and measure the voltage to see if it is normal.

2. Modify or change the power supply wire into thicker one.

3. Check the power polarity and correct the connection.

4. Check to see if power supply or controller is correctly connected to NC.Make sure to see up the controller correctly.

No transform of indicator output with low holding force.

1. The mount plate and the electromagnetic lock face not in complete close.

2. The mount plate is fixed to tight, no room to move.

3. The electromagnetic lock and the mounting plate not at same level for case the door is deformed or moved.

4. The surface of mount plate or electromagnetic lock is not clear.

5. The power supply with lower power.

6. The power supply wire is too thin and long.

7. The electromagnetic lock is malfunction.



1. Check the face of mount plate or electromagnetic lock, if the face of plate is deformed to cause no complete close to the lock, please change the plate.

2. Check if the rubber gasket is put into the stick of plate, and adjusts the bolt of plates not too tight at least a little movable.

3. Adjust the mount plate and electromagnetic lock to be level at each other and close completely.

4. Clean the surface of lock and plate, if rusted to cause no working please change the part.

5. Use millimeter to check the voltage and current of electromagnetic lock to see if it is normal, or need repairing or changing power supply.

6. Change into high quality power supply wire, better no more the 20 meters.

7. Repair or change the electromagnetic lock.

Door cannot open The power is not cut off To check out the connection of power supply and controller, the electromagnetic lock is power-on locking power-off opening type. The lock can be open once power off.
