VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor

VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor

  • VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor
  • VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor
  • VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor
  • VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor
VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: UL/CE/ROHS/FCC
Model Number: VI-280ADS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 12pcs/Carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or or paypal
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 250L*47W*26H(mm) Armature Plate Dimension: 180L*38W*11H(mm)
Holding Force: 280kg(600Lbs) Signal Output: YES
Input Voltage: DC12V Or DC24V Working Current: 12V/480mA 24V/240mA
Door Type Applicable: Wooden Door , Glass Door ,Metal Door , Fireproof Door Bulit In Door Sensor: Yes
Security Type: Power Off To Open Weight: 2kg
High Light:

electromagnetic door lock

,

electric mag locks

               VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor



The VIANS Magnetic Lock series  offer a wide range of high quality electro-magnetic locks (350Lbs, 600lbs and 1200 Lb locks) and brackets to accommodate almost any access control door locking requirement.

Most locks are available in both surface and flush mount designs and can be ordered with special options such as LED lock status indicators, signal relays and built-in timers for automatic re-lock after a preset time period or with door sensor.



Here we would like to specially introduce our VI-280ADS 600lbs Magnetic lock with door sensor.



You May confused:



1,Where to buy door contact?



2,Have to installed door contact and Magnetic lock separately.



One Lock easily solve all your troubles (VI-280ADS):



VIANS VI-280ADS  exactly can solve your above confused questions. We built-in door sensor inside the locks:

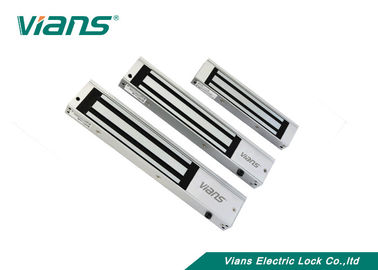

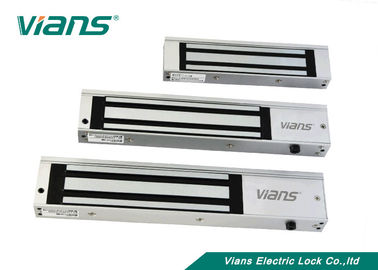

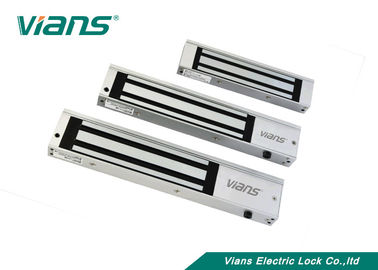

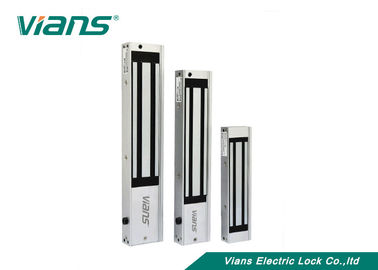

VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor 0

VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor 1



Specifications



1,280KG 600 lbs holding force



2, Magnet size:250L*47W*26H(mm)



3,Armature size: 180L*38W*11H(mm)



4,Operates on 12 or 24 VDC, switch selectable



5, Low current draw: 12V/480mA 24V/240mA



6,Operating temperature: -10C to +55C



7,UL and Canadian UL listed,R38999



Product Features



Green status LED indicates when lock is energized



Non-aluminum parts are plated to resist corrosion



Built-in arc suppression



Can be used with any access control system



Instant release, no hysteresis



Related supporting bracket



1,ZL Mounting Bracket



For in-swing door, install the lock body inside and then need to install the ZK braket at the same time



VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor 2



2, L Mountting Bracket



When the door width is less than 42mm, the width is not enough for Armature Plate of magnetic lock



Installed,It need to add adtional  L type brackets



VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor 3



3,  U Mountting Bracket



Magnetic Locks installed in glass doors require extra U bracket (for 10-15mm Glass door thick)



VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor 4

Related 280KG 600Lbs Series Magnetic lock:



VIANS UL list 280KG 600lbs Super suction Magnetic lock with door sensor 5
