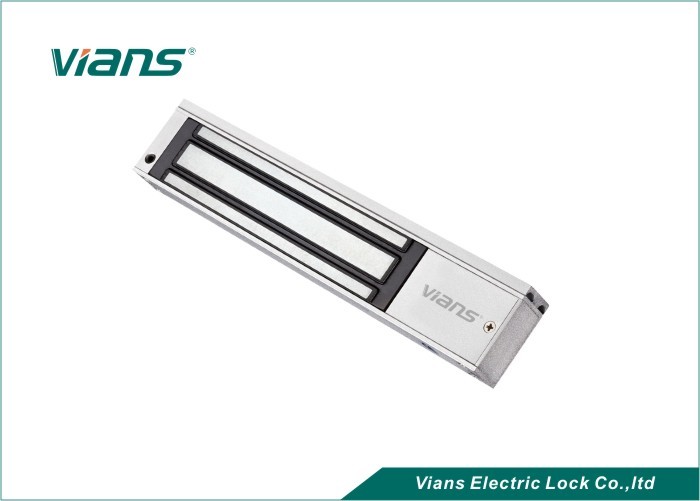

Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors

Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors

  • Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors
Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-280AST
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 250L*47W*26H(mm) Holding Force: 280kg(600Lbs)
Input Voltage: DC12V Or DC24V Working Current: 12V/480mA 24V/240mA
Security Type: Power Off To Open Weight: 2kg
Lock Finish: Electroplated Zinc Suitable: Wooden Door , Glass Door ,Metal Door , Fireproof Door
Humidity: 0~90%(non-condensing) Operating Temp: -10~+55℃(14-131F)
High Light:

electric mag locks

,

magnetic safety lock

time delay Electric Magnetic Lock , remote control gate lock for aluminium doors





Product Overview



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Vians magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.





Specification



Product Parameter Parameter Description
Size 250Lx48.5Wx25H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
signal output Yes
Time delay 0s/3s/6s/9s
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1KG







Feature



  • With LED
  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire
  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan





Installation drawing

Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors 0

Product mounting bracket



Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors 1



Wiring



 Time Delay Electric Magnetic Lock , Remote Magnetic Door Lock For Aluminium Doors 2
