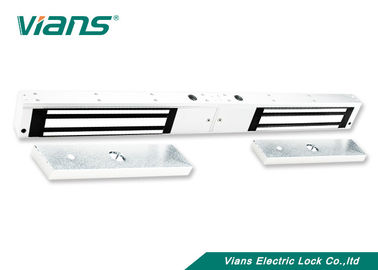

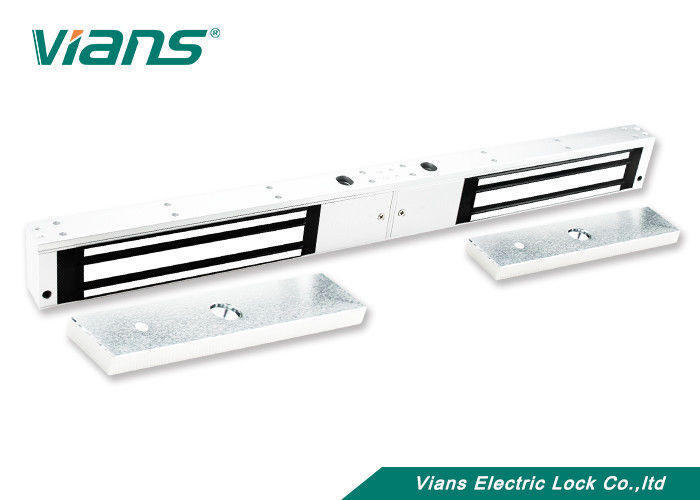

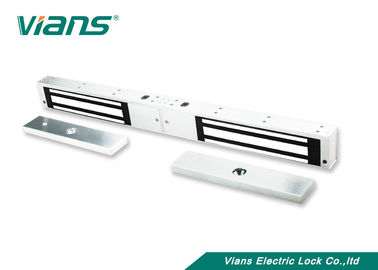

Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS

Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS

  • Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS
  • Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS
  • Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS
  • Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS
Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-280B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 6PCS/CARTON
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 500L*47W*26H(mm) Holding Force: 280kg(600Lbs*2)
Input Voltage: DC12V Or DC24V Working Current: 12V/480mA 24V/240mA
Security Type: Power Off To Open Weight: 4.2kg
Lock Finish: Electroplated Zinc Suitable: Wooden Door , Glass Door ,Metal Door , Fireproof Door
Time Delay: Optional Certificate: CE,FCC,ROHS,UL
High Light:

electromagnetic door lock

,

electric mag locks

Double 280kg Total 1200LBS Electric Magnetic Lock for Swing Double Door





Our Advantage



1. Professional R&D department, can offer you OEM/ODM services;

2. Professional technique supports and good service;

3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.

Products are conducted aging test for 72 hours.

4. Our products are chosen high quality materials and ensure the prophase stability.

5. Our products meet ISO, CE, FCC, RoHS certificates;



Product Overview



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Vians magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.





Specification



Product Parameter Parameter Description
Size 500L*47W*26H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs*2)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
signal output Yes
Time delay Optional
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 4.2KG







Feature



  • With LED
  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire
  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan



Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS 0

Installation drawing

Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS 1

Product mounting bracket



Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS 2



Wiring



 Swing Double Door Electric Magnetic Lock , Electromagnetic Door Lock Total 1200LBS 3
