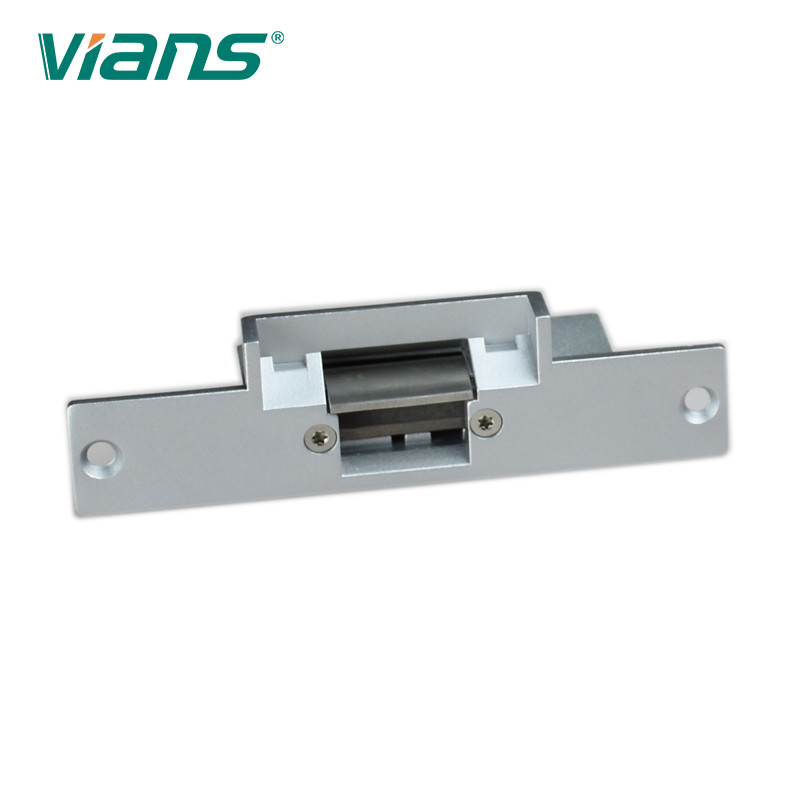

Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material

Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material

  • Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material
  • Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material
  • Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material
  • Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material
Standard Electric Strike Lock DC 12V Fail Secure Hardness Stainless Steel Material
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-700
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 60 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T , , Paypal
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 150Lx40Wx28H(mm) Security Mode: Open When Power Off
Voltage: DC12V±10% Working Current: 200mA
Door Type Applicable: Wooden Door,Metal Door,PVC Door Warranty: 5 Years,3 Years,1 Years
High Light:

electric strike door lock

,

electric door strike

fail secure fail safe standard 12V door strike lock for swing door




The electric strike has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long time working, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last, with hardness stainless steel material, our stike can bear 800kg impact pressure.






Product Parameter



Product Parameter Parameter Description
Lock Size 150Lx40Wx28H(mm)
Certificate CE/FCC/ROHS
Input Voltage DC12V±10%
Working Current 200mA
Opening Mode 90 Degree Swing Door
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay NO
Signal output NO
Security Type Locked when energized / open when energized
Weight 0.3KG





Installation drawing



(1





Relates Products:



Here is our bolt lock series, Any questions Welcome contact us.







Our Certificate:



All our products pass CE/FCC/Rohs. Below is our certificate please kindly check:








For mor informations. Please send us your detail inquiry. VIANS Looking forward to offer our high



products with best service to you!
