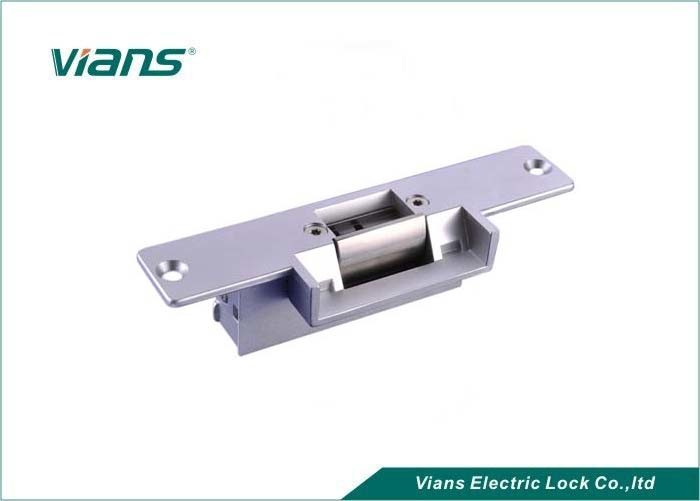

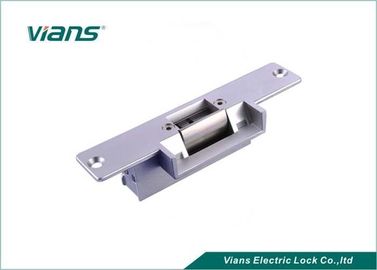

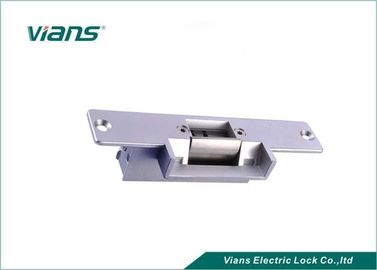

Standard Access Control Electric Strike Door Lock Fail Security With Signal
Product Feature
1. Bear 500kg impact pressure.
2. Special design, the lock bolt can adjust the distance.
3. It is especially suitable for the metal frame with hole for directly installation.
4. Pass the 500 000 times of aging test.
5. Products pass the CE, FCC and ROHS certification.
The electric strike has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long time working, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last, with hardness stainless steel material, our stike can bear 800kg impact pressure.
Product Parameter
| Product Parameter |
Parameter Description |
| Lock Size |
150Lx40Wx28H(mm) |
| Certificate |
CE/FCC/ROHS |
| Input Voltage |
DC12V±10% |
| Working Current |
200mA |
| Opening Mode |
90 Degree Swing Door |
| Door Type Applicable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Time Delay |
NO |
| Signal output |
YES |
| Security Type |
Locked when energized / open when energized |
| Weight |
0.3KG |
| Opening Mode |
90 Degree Swing Door |
| Contact |
Dry contact |
| Surface Temperature |
Within +20°C |
| Material of Housing |
Aluminum alloy |
| Weight |
0.30kg |
1. Original High Quality Products:
All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,
we don’t sell products with only low prices.
2. Professional Technical Team:
We can offer comprehensive solution for your projects
We can offer detailed pre-sales requirements analysis and guide.
We can offer professional remotely technical support for problems
Installation drawing
