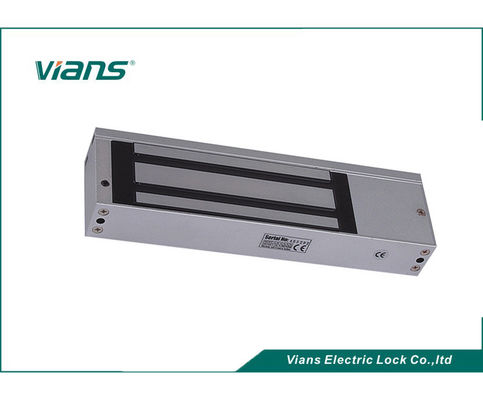

Single Door Pure Copper electro magnetic door lock 1200lbs with Brackets

Single Door Pure Copper electro magnetic door lock 1200lbs with Brackets

  • Single Door Pure Copper electro magnetic door lock 1200lbs with Brackets
  • Single Door Pure Copper electro magnetic door lock 1200lbs with Brackets
Single Door Pure Copper electro magnetic door lock 1200lbs with Brackets
Product Details:
Place of Origin: Shenzhen China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-500A
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: 12PCS/Carton
Delivery Time: Usually 7 days after payment confirmed.
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Holding Force: 1200lbs Coil Material: Pure Copper
Lock Size: 265*71*40mm Plate Size: 185*60*13mm
PCB Type: Pin-insert Type Signal Type: Door/Lock
Weight: 4.5kgs Voltage: 12V/24V
High Light:

electromagnetic door lock

,

electric mag locks

Single Door Pure Copper 1200lbs Electromagnetic Mag Locks with Brackets



Features

  • Free OEM service and 5 years warranty.
  • Very easy to replace the pcb.
  • CE/FCC/RoHS certifications
  • High-strength alluminum housing.
  • Many models for your choice.
  • Stronger holding force
  • Imported high-quality silicon steel material
  • Pure copper coil

Advantages of mag locks

  • The lock will open in the case of an emergency.
  • The lock can be made to open with any electrical signaling method (key code, swipe card, motion sensor, biometrics, etc.)
  • Common electromagnets can remain closed under as much as 1,200 pounds of force.
  • The lock and holding force of the magnet can be increased by increasing the current.



Specification




Product Parameter Parameter Description
Size 265*71*40mm
Armature Plate Dimension 185*60*13mm
Holding Force 500kg(1200Lbs)
Input Voltage 12 or 24VDC
Current 12V/600mA or 24V/300mA
Bracket Shapes L-shaped,ZL-type
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Housing finish Aluminum anodizing
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 4.5KGS






Product Introduction

The simplest way to explain magnets is how we all learn about them in elementary school. In a magnet, there is a North and South pole. Between similar poles, the magnets repel, and opposite poles attract. That is almost too simple of an explanation for what is a beautifully nuanced process. Magnets are very complicated aspects of nature that represent complex aspects of quantum mechanics. The spin of the electron while orbiting the nucleus of an atom is what causes a magnetic field. The spin of the paired valence electrons in an atom must be parallel to one another to make the substance magnetic.



This only naturally occurs in three elements: iron, nickel, and cobalt. Each magnetic field that an atom creates is called a domain, and they are not necessarily organized in a material to give it a single north and south pole. Much more often, the three aforementioned metals will have a chaotic organization of poles that do not make them attract other magnets. What makes something a magnet, in the way that most people understand the word, is when those atomic domains are uniformly structured in a material. This can be accomplished naturally in rare earth metals (most commonly lodestone) or artificially with the use of an electrical current. What your lock will use will depend on the nature of the mechanism.
