Place of Origin: | China |
Brand Name: | vians |
Certification: | CE / FCC / MA / ROHS |
Model Number: | EH63/73 |
Minimum Order Quantity: | 10 pieces |
---|---|
Price: | nigotiation |
Delivery Time: | 7 business days after receive payment |
Payment Terms: | , T/T |
Supply Ability: | 4000pieces/week |
Card Type: | Mifare/CPU Card | Card Capacity: | 2000 Cards |
---|---|---|---|
Reading Range: | 3-5cm | Working Current: | 35mA |
Waterproof Grade: | IP68 | Operation Mode: | Card,Password,Card+Password |
High Light: | one door access controller,em card reader |

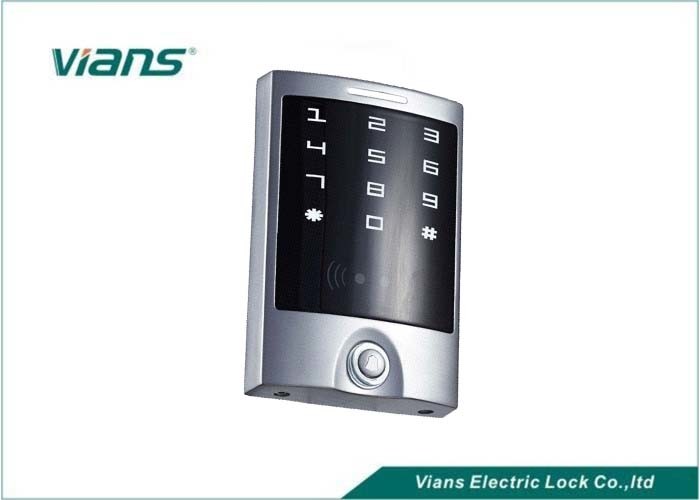

EH63 / EH73 Single Door Metal Access Control With 2000 Mifare / CPU Card
Product Overview
The access control is not only has the function of the controller but also built in card reader,which is more
convenient for using and installation.waterproof level of IP68,helps to prove the installation in outdoor
harsh environments,and provides powerful security for 2000 users.with function of low power consumption
luminous keyboard,independent password,wiegand input,output short circuit protection,door button,the
interface for doorbell and so on.
model | EH63/73 | |
Card Type | Mifare/CPU Card | |
Working Frequency | 13.56MHz | |
Reading Range | 3-5cm | |
Card Capacity | 2000cards | |
Operation Mode | Card,Password,Card+Password | |
Input Voltage | DC12V±10% | |
Working Current | 35mA | |
Protocol | Wiegand 26/34 | |
Waterproof Grade | IP68 | |
Dimensions | 125*83*21.7mm |
Advantage of the Product
1. Don't need to connect the computer.System Setting can be offline including add or delete cards,password modification and lock time.
2. It has exit button,door-magnet and door bell interface etc.
3. Beatuiful design,Lighted keyboard with silver plating which is time and fashion.
4. Output has waterproof function,it is suitable for outdoor use.
5. Perfect safety performance,Adopt metal shell and have dismiss alarm and door-magnet alarm.
Product Show
The release product
Certifications
Other Main Product
FAQ
Q: How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.
Q: How much does it cost to ship to my country?
A: Please tell us your receive goods address, we will check the shipping cost for your reference
Q: Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q: I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
