| Place of Origin: | China |
| Brand Name: | Vians |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-280ADS |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 12pcs/carton |
| Delivery Time: | 7 working days after payment confirmed |
| Payment Terms: | T/T or |
| Supply Ability: | 3,000pcs per month |
| Lock Size: | 250*47*26mm | Signal: | Door Signal And Lock Signal Output |
|---|---|---|---|
| Holding Force: | 280kgs (600lbs) | Security Type: | Fail Safe (power Off To Open) |
| Weight: | 2 KG | Door Type Applicable: | Wooden Door,Glass Door, Metal Door ,Fireproof Door |
| High Light: | electromagnetic door lock,electric mag locks |
||

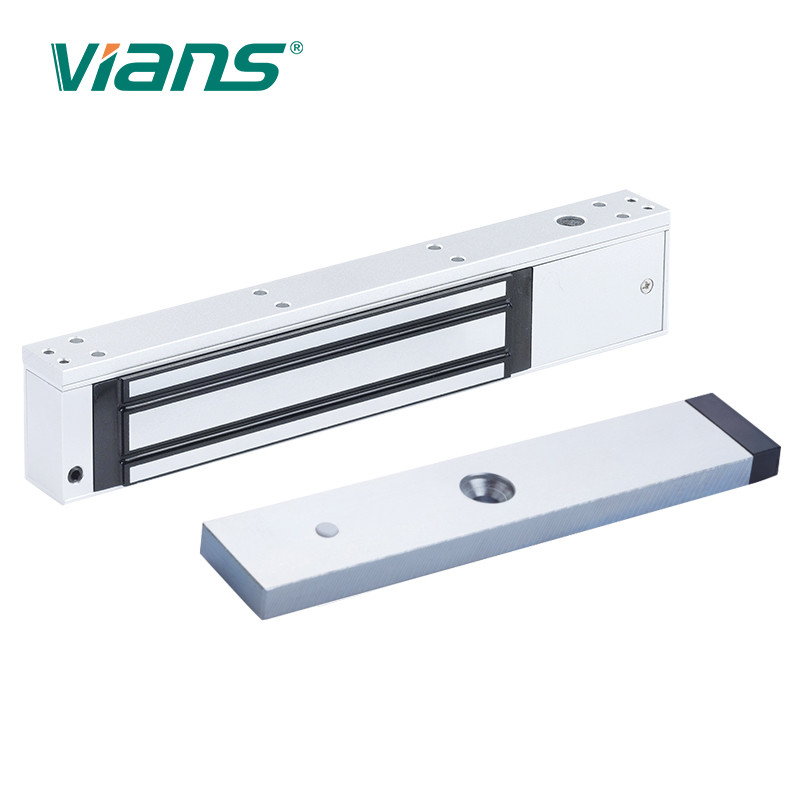

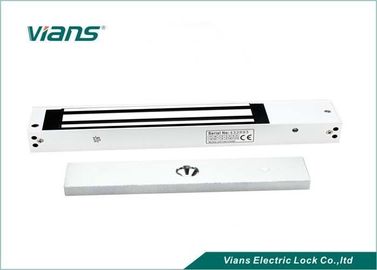

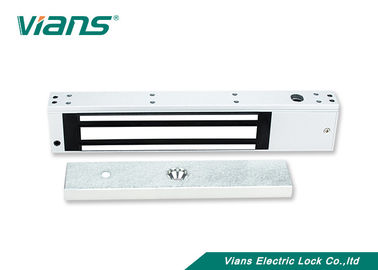

600Lbs LED EM Lock Magnetic Lock Fail Safe Lock Signal with Mortise Mount
Vians Mag Locks Introduction :
Vians magnetic locks adopt international leading production equipment ,which not only makes our locks' antioxidant capacity of the surface reach the international leading level ,also helps to increase the holding force .Vians EM lock used anti-wear manufacturing materials , the anti residual magnetism design avoid mechanical failure .
Specification
| Product Parameter | Parameter Description |
| Size | 250*47*26(mm) |
| Armature Plate Dimension | 180*38*11(mm) |
| Holding Force | 600lbs |
| Input Voltage | 12V or 24V |
| Current | 480mA or 240mA |
| Bracket Selection | U ,L ,ZL ,F type bracket |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Signal type output | Door signal and Lock signal output |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2 KG |
Features :
Factory Overview
Our Vians is one of the leading professional electric lock manufactures in China,which was established in 2007. We are dedicated to Magnetic Lock,Electric Bolt Lock,Electric Strike,Electric Rim lock and Exit button and so on. All our products are independent design,development and production and passed CE ,MA certification and related quality inspection. So far our products have been exported to more than 60 countries and regions which are widely used in airport,subway,bank,prisons ,intelligent Building and community .
FAQ
Q: Do you produce this maglocks by your own factory?
A: Yes, maglocks is one of our pruduction lines. Our factory is located in Dongguan City close to Shenzhen.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
