| Place of Origin: | Shenzhen China |
| Brand Name: | Vians |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-180AS |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 12PCS/Carton |
| Delivery Time: | Usually 7 days after payment confirmed. |
| Payment Terms: | T/T or |
| Supply Ability: | 3,000pcs per month |
| Holding Force: | 350Lbs（180kgs） | Coil Material: | Aluminium Alloy |
|---|---|---|---|
| Lock Size: | 170*42*21mm | Plate Size: | 130*33*9mm |
| Weight: | 1.2Kgs | Current: | 12V/300mA Or 24V/150mA |
| Warranty: | 5 Years | ||
| High Light: | electromagnetic door lock,electric mag locks |
||

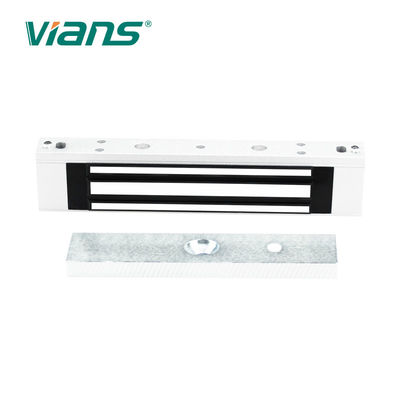

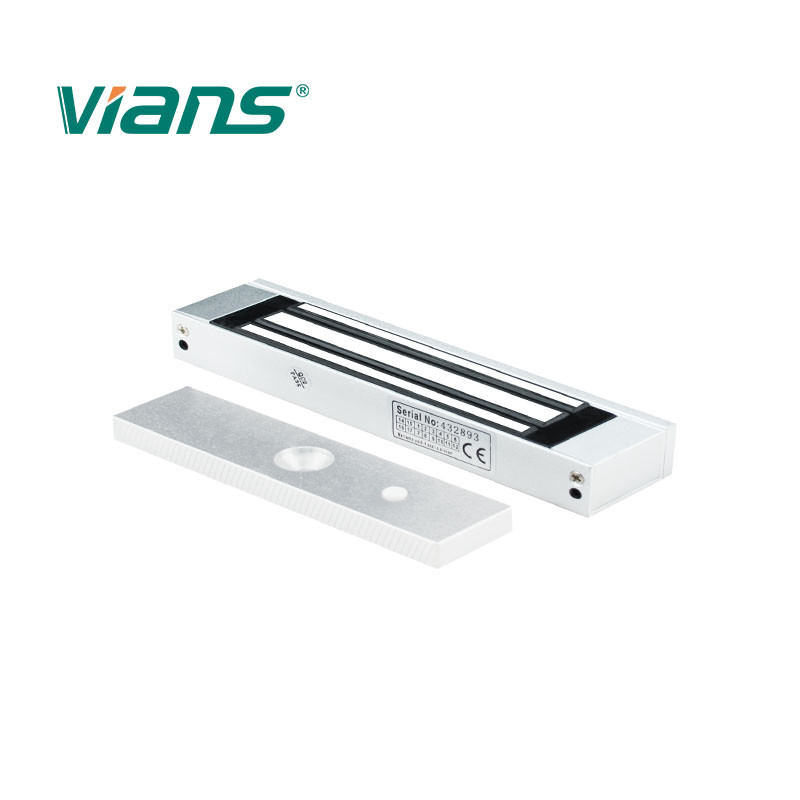

Signal Output 180kgs Electric Magnetic Lock for Single Door Acees Control
Introduction of Mag Locks
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly attract iron plate. Even small current will produce huge magnetic, which can effectively lock the door.
Specification
| Product Parameter | Parameter Description |
| Size | 170*42*21 |
| Armature Plate Dimension | 130*33*9 |
| Holding Force | 180kg(350Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/300mA or 24V/150mA |
| Bracket Shapes | L-shaped,ZL-type,U-shaped brackets |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Housing finish | Aluminum anodizing |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 1.2kg |
Features of this product
Installation of mag locks
Factroy Informations
As a ISO-9001 certified factory, we have been specialized in producing electric locks for about 10 years, with full experience and professional in high-quality material puchasing , efficient production management , quality control and so on. Besides, we are trying our best to provide a better purchase experience for all of our customers. Every year, we are trying to attend many exhibitions , and also many customers visit our factory for a potential chance to start a new business or try to firgure out a deeper way to coorperate.
We would like to cooperate with companies and people from all over the world, with our high-quality electric locks and professional hard work.
FAQ
Q: How could I get a sample first?
A: Please contact me for a sample. We would like to provide a sample first, and we could promise that the quality on mass production will be the same as sample.
Q: Is OEM service available?
A: Yes, as a factory, OEM production is one of our main business types. We are providing consistent OEM service to many famous brands arond the world.
Q: How is your payment term?
A: Our usual payment term is T/T, paypal, . And if necessary, we would like to accept other payment term through our further communication.
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
