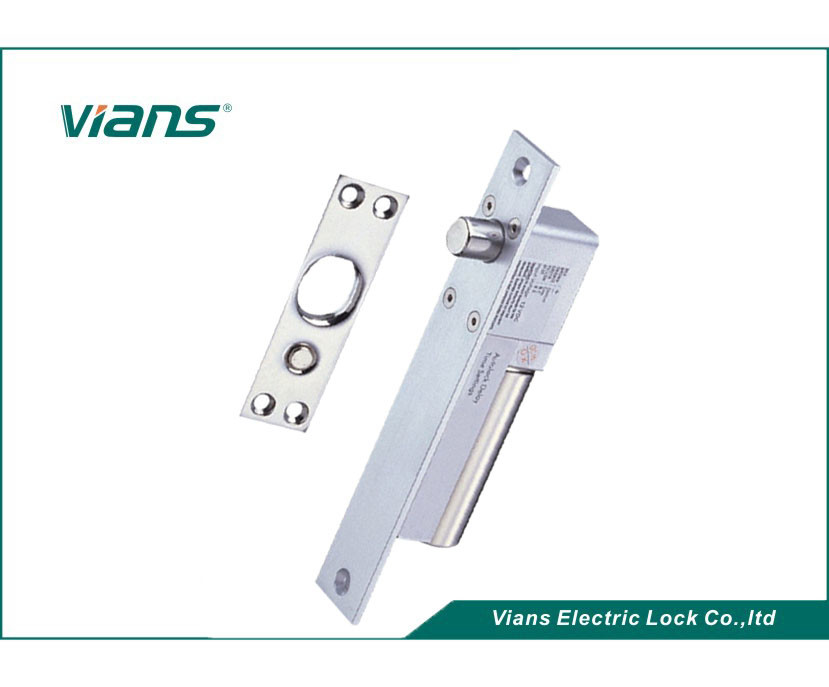

Signal Output 12V 110mA Electric Drop Bolt Lock with 5 Years Warranty

Signal Output 12V 110mA Electric Drop Bolt Lock with 5 Years Warranty

  • Signal Output 12V 110mA Electric Drop Bolt Lock with 5 Years Warranty
  • Signal Output 12V 110mA Electric Drop Bolt Lock with 5 Years Warranty
Signal Output 12V 110mA Electric Drop Bolt Lock with 5 Years Warranty
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-802ST
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 30 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Features: Low Working Temperature Signal Feedback: Yes
Time Delay: Yes Time Delay Setting: 0S/3S/6S/9S
Bolt Material: Stainless Lock Size: 205*35*40mm
Weight: 0.72kgs Warranty: 5 Years With Free OEM Service
High Light:

electric mortise lock


drop bolt lock


Signal Output 12V 110mA Electric Drop Bolt Lock with 5 Years Warranty




  • Fail safe operation
  • Reverse current protection PCB
  • CE Certificate by European Union
  • Full range of optional brackets
  • Low power consumption
  • Low temperature, safe


Product Parameter Parameter Description
Size 205*35*40mm
Strike 90*25*2
Input Voltage DC 12 V
Current 110mA
Bracket Shapes L-shaped bracket
Humidity 0~90%(non-condensing)
Housing finish Aluminum anodizing
Door type Wooden/glass/metal/fireproof door
Time delay Yes
Signal output Yes



Electric dropbolt locks series
Electric Bolt lock is kind of electric control locks,it works by means of extending or retracting the lock bolt with electric current.Electric Bolt lock is designed mainly for glass door ,wooden door and metal door,it is suitable for bidirectional door and sliding door,becomes the best choice of access control automation management.
Our factory can produce many models of electric drop bolt locks with different configurations. You could see from the following photos. And there are some models having the similar appearance, such as the VI801 and Vi-805ST. But they are different in function. As you can see from modle name, "S" means this model of product is with signal output, and "T" means that this model of product is with time delay function (0S,3S,6S,9S).  We designed our product for the porpose of some particular application. For example, VI-803ST is with an extra open line, so it could be conntected to a big access control system. And VI-805ST is particularly for auto door application. And VI-810ST is particular designed for some place, which requires a higher-level security, such as banks or prisons. Comparing to other models, you can use the key to open the lock.
Electric bolt locks series
electric bolt locks series part 2
Factroy Informations


Established in 2007, Vians is an ISO 9001 Certified manufacturer that specializes in the design and production of electric locks. Vians' product line includes mag locks, electric dropbolt locks, electric strikes, electric motor locks and so on. Our products have gained CE/FCC/RoHS certifications, and providing free OEM service such as logo printing. We have been cooperated with many brand in access control industry around the world, and both our quality and price have been approved by them.


Every year, we are trying to attend many exhibitions

And also many customers visit our factory for a potential chance to start a new business or try to firgure out a deeper way to coorperate.
 Our customers


Our Service


  •  Any inquiries will be replied within 24 hours
  • Professional manufacturer. Welcome to visit our website
  • Free OEM/available
  • High quality, fashion design, reasonable & competitive price, fast lead time.
  • After-sale service
