Place of Origin: | China |
Brand Name: | VIANS |
Certification: | CE/ROHS/FCC/MA |
Model Number: | VI-703 |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | negotiation |
Packaging Details: | 60 pcs/cartons |
Delivery Time: | 7 working days after received your payment |
Payment Terms: | T/T , , Paypal |
Supply Ability: | 3,000pcs per month |
Lock Size: | 165Lx32Wx33H(mm) | Security Mode: | Lock Or Open When Power Off |
---|---|---|---|
Holding Stength: | 500kg | Door Type Applicable: | Wooden,metal,pvc Door |
Certificate: | CE/FCC/ROHS | Material Of Housing: | Stainless Steel |
High Light: | 12v strike lock,electric door strike |
Signal Monitor Heavy Dust Door Electric Strike Lock 12v American Standard
Product Feature
1. Bear 800kg impact pressure.
2. Special design, the lock bolt can adjust the distance.
3. It is especially suitable for the metal frame with hole for directly installation.
4. Pass the 500 000 times of aging test.
5. Products pass the CE, FCC and ROHS certification.

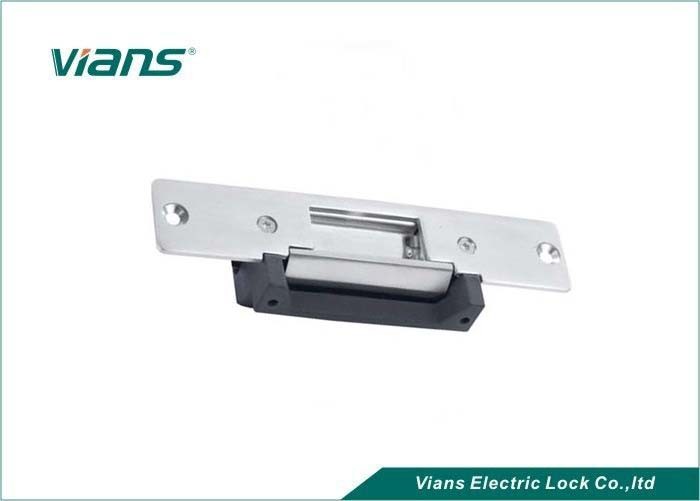

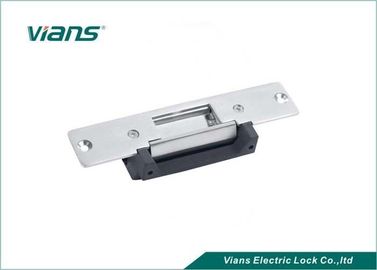

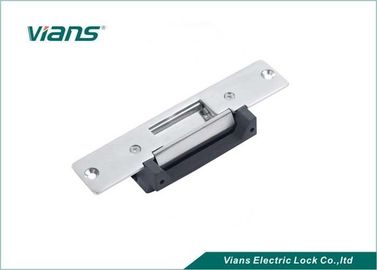

Product Picture
Product Parameter
Product Parameter | Parameter Description |
Lock Size | 165Lx32Wx33H(mm) |
Certificate | CE/FCC/ROHS |
Input Voltage | DC12V±10% |
Working Current | 200mA |
Opening Mode | 90 Degree Swing Door |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | NO |
Signal output | NO |
Security Type | Locked when energized / open when energized |
Opening Mode | 90 Degree Swing Door |
Contact | Dry contact |
Surface Temperature | Within +20°C |
Material of Housing | Stainless steel |
Weight | 0.4kg |
Installation drawing
Relates Products:
Here is our electric lock series, Any questions Welcome contact us.
Our Certificate:
All our products pass CE/FCC/Rohs. Below is our certificate please kindly check:
