Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode

Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode

  • Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode
  • Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode
  • Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode
Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-702
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 60 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T , , Paypal
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 124Lx32Wx33H(mm) Security Type: Lock When Power Off
Input Voltage: DC12V±10% Working Current: 200mA
Door Type Applicable: Wooden Door/metal Door Material Of Housing: Stainless Steel
High Light:

electric strike door lock

,

electric door strike

VI-703 ANSI standard Heavy Duty Door Lock from Electric strike



Product Feature

Strike lock could bear 800kg impact pressure.It also could used for wooden door,with the notch of strike sucking  the bolt of door.



1. Bear 800kg impact pressure.



2. Special design, the lock bolt can adjust the distance.



3. It is especially suitable for the metal frame with hole for directly installation.



4. Pass the 500 000 times of aging test.



5. Products pass the CE, FCC and ROHS certification.

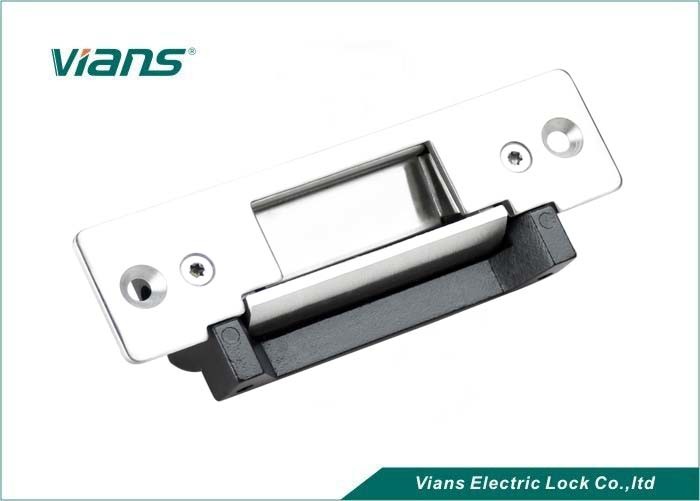

Product Picture

Heavy Duty Electric Strike Lock VI-702 ANSI Standard 90 Degree Swing Door Opening Mode 0





Product Parameter



Product Parameter Parameter Description
Lock Size 124Lx32Wx33H(mm)
Certificate CE/FCC/ROHS
Input Voltage DC12V±10%
Working Current 200mA
Opening Mode 90 Degree Swing Door
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay NO
Signal output NO
Security Type Locked when energized / open when energized
Opening Mode 90 Degree Swing Door
Contact Dry contact
Surface Temperature Within +20°C
Material of Housing Stainless steel
Weight 0.4kg







Installation drawing



(1
