| Place of Origin: | China |
| Brand Name: | Vians or OEM |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-808ST |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 30 pcs/cartons |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | T/T , or Paypal |
| Supply Ability: | 50000pcs per month |
| Fail Secure: | Locked When Energized | Lock Size: | 148L*43W*39H(mm) |
|---|---|---|---|
| Strike: | 148L*43W*25H(mm) | Voltage: | DC12V+_10% |
| Working Current: | 80mA | Door Type: | Fully Frameless Glass Door |
| High Light: | sliding door bolt lock,drop bolt lock |
||

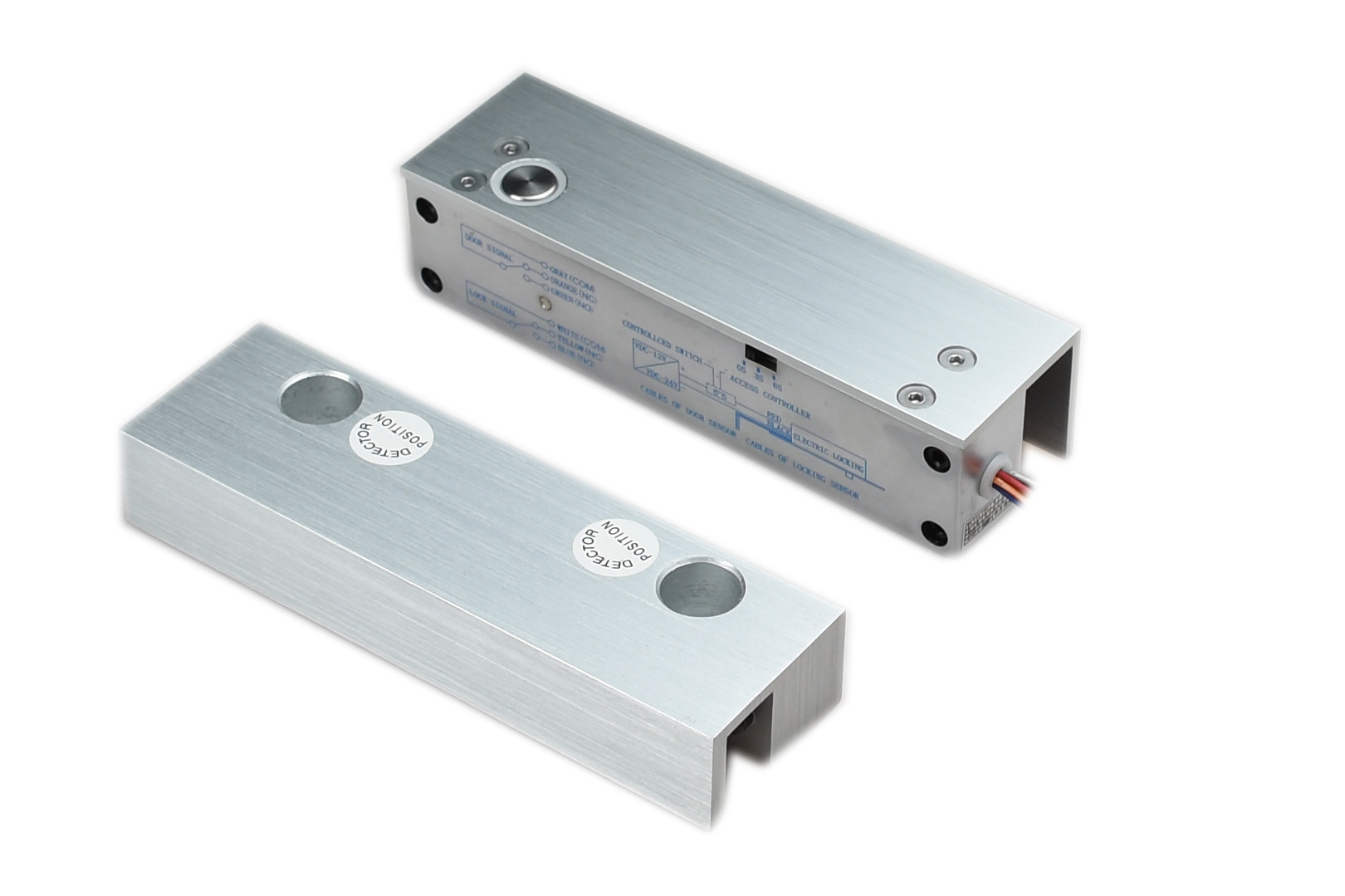

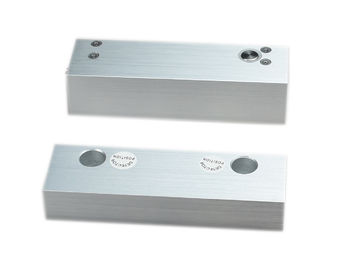

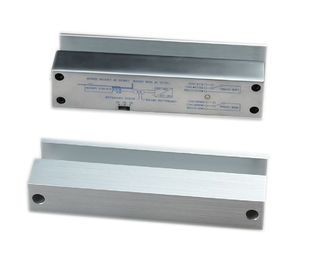

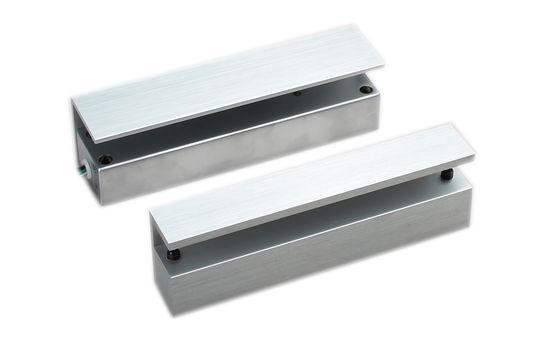

Fully Frameless Glass Door Electric Bolt Lock Fail Secure Electronic Deadbolt Lock VI-808ST
Electric Bolt lock was designed mainly for glass door, wooden door and metal door, it is suitable for bidirectional door and sliding door, it is also the best choice for access control automation management.
Advantage of the products
> High Quality, safe and Durable.
> Low Power, Environmental Protection.
> Special photoelectricity control,three steps current application.
> Long Life with 500000 cycles.
> MOV Provides Reverse Current Protection.
> Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
> Autolock Time Delay: 0,3,6,9sec.
> Door statue signal output contact(NC.COM).
> Double protection for loading current.
> Auto-relock if no Action within 5 secs.
> Certificate:CE FCC and MA.
> Photoelectricity Control,Low Temperature,
> A:The Low Current is Changed immediately;
> B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
> C:The Photoelectricity Control Technology,prevent the machanical defect.
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 148Lx43Wx39H(mm) |
| Strike Size | 148Lx43Wx25H(mm) |
| Input Voltage | DC12V±10% |
| Start Current | 950mA |
| Working Current | 80mA |
| Door Type Applicable | Fully Frameless Glass Door |
| Time Delay | 0,3,6,9sec |
| Signal output | YES |
| Security Type | Locked when energized |
| Weight | 1.6KG |
Features:
Secure mode: Locked when energized
Especially suitable for fully frameless glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will lock when the power is cut off.
With no external interference, making it more stable and safer.
Relates Products:
Here is our bolt lock series, Any questions Welcome contact us.
Exhibitions:
We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China very
year, welcome you come to visit us :)
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
For mor informations. Please send us your detail inquiry. VIANS Looking forward to offer our high products with best service to you!
