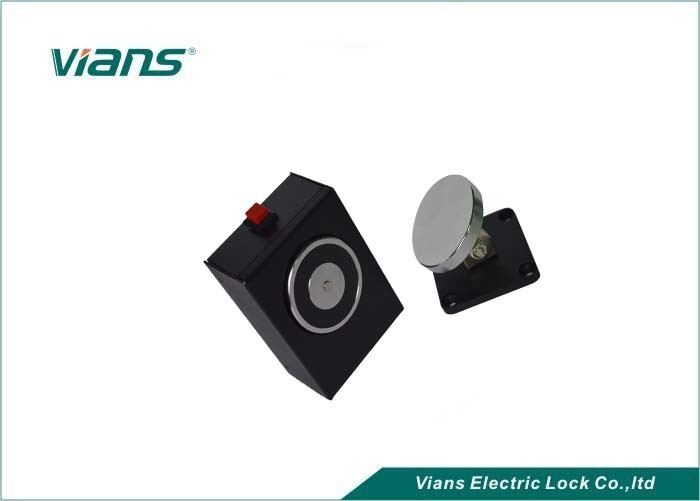

Top Hot Brand Vians 50kg(110Lbs) power off to open floor mount door holder for all kinds door with CE
Product Overview
Vians door holder with fireproof plastic cover, is low power consumption, more environmental and more duable. Release the fire door automatically in case of fire, build-out release button for testing, build-in MOV reverse current pretection.
Specification
| Product Parameter |
Parameter Description |
| Dimensions |
70Lx40Wx85H(mm) |
| Holding Force |
50kg(110Lbs) |
| Voltage |
DC24V+10%(12VDC need order) |
| Current Draw |
12V/180mA 24V/70mA |
| Optional |
Manual door release button |
| Suitable for |
All Kind of Single & Double Smokeproof Doors |
| Surface Temp |
≤+20℃ |
| Operating Temp |
-10～+55℃(14-131F) |
| Suitable Humidity |
0~90%(relative humidity) |
| Finishes for Shell |
High Temperature Paint and Environmental Protection |
| Finishes for Armature |
Zinc |
| Weight |
0.9kg |
Feature
- Col linear Load: 50kg, 110pounds.
- The Standard Voltage is 24VDC when finished.
- MOV Provides Reverse Current Protection.
- Low Power Consumption, Environmental Protection.
- Anti-Residual Magnetism Design.
- Professional Design, Dual Insulate Housing.
- Automatically close the smoke proof door when fire happens.
- Manual door release button.
- CE Certificate.
Installation drawing
Packing
| Packing Quantity(PCS/CTN) |
15 |
| Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
| Gross Weight(KG) |
15.75 |
