|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||30 pcs/cartons|
|Delivery Time:||7 working days after received your payment|
|Payment Terms:||T/T or|
|Supply Ability:||3,000pcs per month|
|Input Voltage:||DC12V (24V Need To Customized)||Working Current:||110mA|
|Application Door:||Metal Doors, Wooden Doors, Fireproof Doors, Glass Door||Security Type:||Locked When Energized|
|Signal Output:||YES||Time Delay:||YES|
sliding door bolt lock,
electric mortise lock

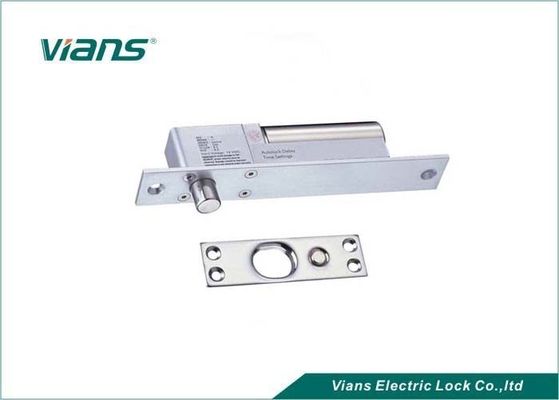

Vians two wires electric drop bolt lock with time delay 5 years warranty
Electric bolt lock is kind of electric control locks,it works by means of extending or retracting the lock bolt with electric current.the vians electric bolt use the microprocessor chip to control electric circuit,so it decreases the power consumption and really has the ultralow temperature function.
1. Suitable for all kind of the door
2. With low power, environmental protection
3.Time delay function: 0/3/6/9sec
4. Operating voltage: 12VDC +10% range
5. Starting current: 1200mA (start the moment)
6. Current:120mA (fully locked)
7. Cylinder strength: Hardened stainless steel solid lock core,under 1000kg pressure
8. Select door type: wooden doors, glass doors, metal doors, fire doors
9. Signal output: Door state signal output NO, NC, COM contacts
10. Lock body surface temperature: low temperature
11. Door magnetic induction distance: 8mm (only used reed all U.S. imports)
12. Use the ambient temperature: -10°C-55°C (14 ~ 131F)
13. Use environment humidity: 0 ~ 90% relative humidity
14. Electric locking and durable design: design professional magnetic materials, 50 million times durability
Electric Bolt Advantages:
Low Temperature, safe and Durable.
Low Power, Environmental Protection.
Special photoelectricity control
Long Life with 500,000 Operations.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.
Double protection for loading current.
Photoelectricity Control, Low Temperature:
A:Low Electric Current changes immediately;
B:When door frame doesn't coincide with door leaf, door leaf against the bolt, the electric bolt will start the low-power function to bring low temperature.
C:Photoelectricity Control Technology, prevent mechanical defect
|Product Parameter||Parameter Description|
|Door Type Applicable||Wooden door , Glass door ,Metal door , Fireproof door|
|Security Type||Locked when energized|
Here is our bolt lock series, Any questions Welcome contact us.
We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China every
year, welcome you come to visit us :)
