| Place of Origin: | Shenzhen |
| Brand Name: | VIANS |
| Certification: | CE/FCC/MA/ROHS |
| Model Number: | VI-807ST |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 30 pcs/cartons |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | T/T or |
| Supply Ability: | 3,000pcs per month |
| Feature: | Signal Output And Time Delay | Application: | Narrow Frame Door |
|---|---|---|---|
| Secrity Type: | Fail-safe Or Fail-secure | Size: | 200*24*39mm |
| Weight: | 0.75kg | Warranty: | 5 Years |
| High Light: | drop bolt lock,electric mortise lock |
||

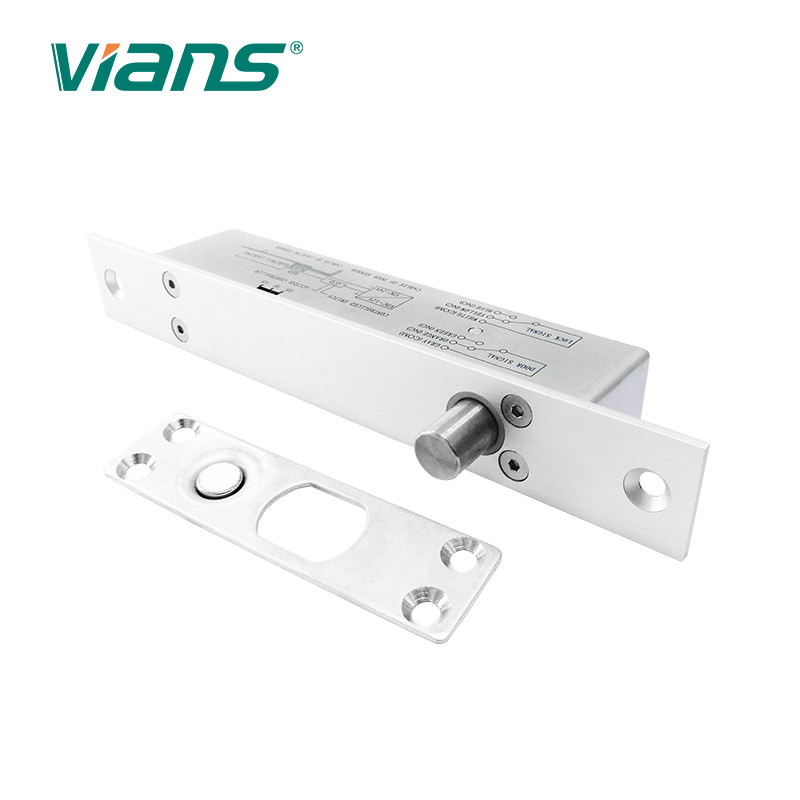

Fail Secure Long Panel Electric Bolt Lock With Timer Lock Signal Output
More details about this product
This product is designed narrow-frame door. Its panel is smaller than usual model of electric bolt lock. The width of the panel of this model is 24.5mm, while other models of are much bigger. Take VI-801 for example, its width is 35mm. With the narrower panel, this model of elelctric bolt lock is suitable for narrow frame door. Besides, we could customize the security type for this model. Fail-safe or fail-secure, that's all up to your choice.
Paremeter of this product
| Items | Value |
| Model | VI-807ST |
| Function | Access control system lock |
| Lock Size | 200Lx24Wx39H(mm) |
| Strike Size | 90Lx25Wx2(mm) |
| Input Voltage | DC12V±10% |
| Working Current | 80mA |
| Weight | 0.75kgs |
| Working Temperature | ultra-Low design |
| Security Type | Power off to unlock(Can customized to power off to lock) |
| Time Delay | YES |
| Signal output | YES |
| Door Type Applicable | Wooden door/Glass door/Metal door/Fireproof door/Sliding door |
| Installation | External mounting |
| OEM Service | Ok |
| Certifications | UL/CE/FCC/RoHS |
| Warranty | 5 Years |
Related products of this product
If possible, you could also tell me more details about the images about the locks you need. We will help to analyse and try to firgure out the best solution for you.
Our exhibitions
Bellow are the photos taken in the exhibitions we have attented. Thanks again for their visit and showing the interest in our elelctric lock. At exhibition, you could also see this model of electric bolt lock. It we have the chance to meet at exhibition one day, maybe we could talk more and more about electric bolt lock and other electric locks.
Our factory
Our factory is located in Dongguan city. Now we have over 150 workers. Our factory is very reliable and is also the supplier for many trading company in China. Our product catalogies is including electromagnetic lock, elelctric strikers, electric bolt lock, etc. We own the complete production precess from production of steel parts to packaging. We look forward to your visit to our factory. We promiss you an excellent visit expererience.
