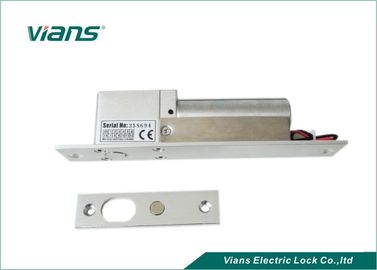

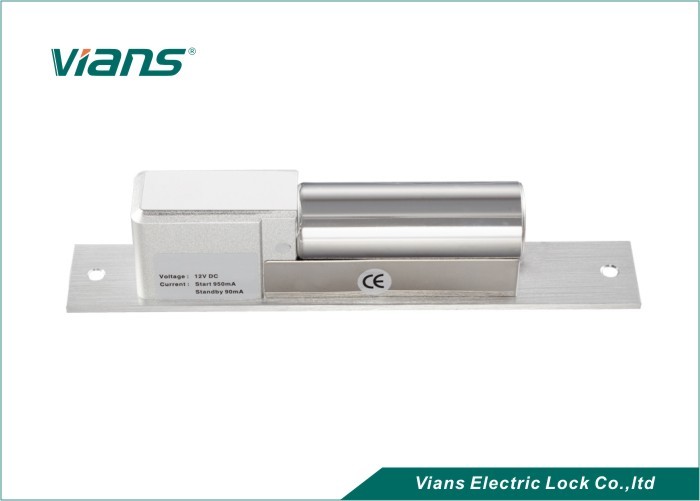

Fail Secure Electric Drop Bolt Door Lock , Electric Drop Bolt For Gates Low Temperature

Fail Secure Electric Drop Bolt Door Lock , Electric Drop Bolt For Gates Low Temperature

  • Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature
  • Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature
Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-801
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 30 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 205L*35W*40H(mm) Strike: 90L*25W*2H(mm)
Voltage: DC12V±10% Quantity Of Wires:: 2
Start Current: 950mA Working Current: 110mA
Mounting Bracket: VI-800L/VI-800U Security Mode: Unlock When Power Off
Door Type Applicable: Wooden Door , Glass Door ,Metal Door , Fireproof Door Time Delay: NO
Signal Output: NO Weight: 0.72KG
High Light:

sliding door bolt lock

,

drop bolt lock

Low Temperature Security Prodect Sliding Door Electric Drop Bolt Door Lock



Product Parameter



Product Parameter Parameter Description
Lock Size 205Lx35Wx40H(mm)
Strike Size 90Lx25Wx2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 110mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay NO
Signal output NO
Security Type Locked when energized
Weight 0.72KG


The VIANS Electric Bolt lock use the microprocessor chip to control electric circuit, so it decreases the

power consumption and really has the ultralow temperature function. After 500 000 times of test, we can

assure you that our locks are more stable, more environmentally friendly and durable. Electric Bolt lock

was designed mainly for glass door, wooden door and metal door, it is suitable for bidirectional door and

sliding door, it is also the best choice for access control automation management.



Advantage of the products





◆ Photoelectric control technology, prevent mechanical failure.

◆ Ultra-low temperature design, Safer and more durable.

◆ Ultra-low-power design, More durable and more environmentally friendly.

◆ More than 500 000 working times.

◆ Built-in reverse current and prevention device (MOV).

◆ Intelligent single chip configuration, three types current application.

◆ High strength aluminum alloy lock body, stainless steel lock bolt.

◆ Products pass the EU CE and china MA qualified certification.







Installation drawing






Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature 1
Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature 1Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature 1

Fail Secure Electric Drop Bolt Door Lock ,  Electric Drop Bolt For Gates Low Temperature 4
