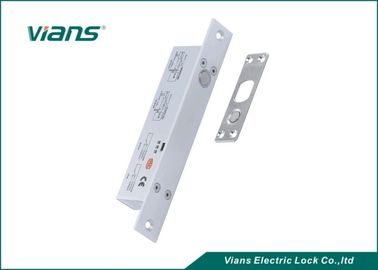

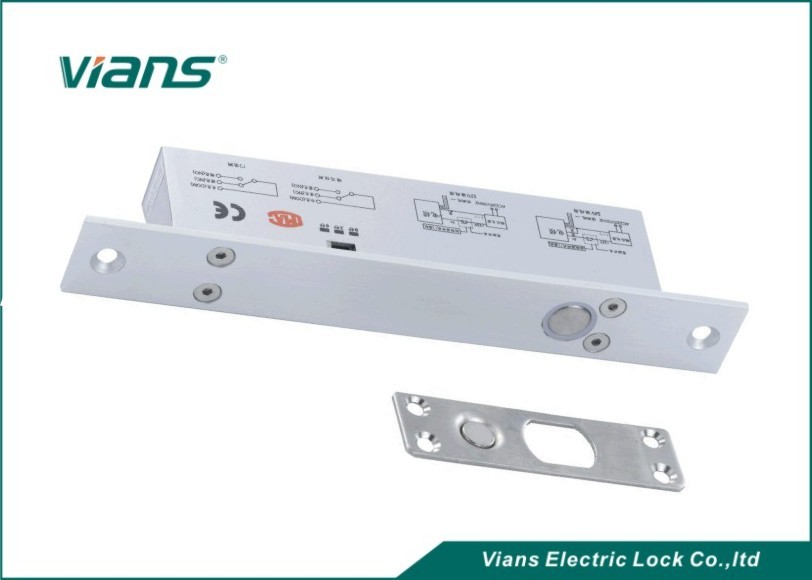

Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel

Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel

  • Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel
  • Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel
Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-807ST
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 30 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Feature: NO/NC Customizable Application: Narrow Frame Door
Secrity Type: Fail-safe Or Fail-secure Lock Signal: Yes
Timer: Yes Size: 200*24*39mm
Weight: 0.75kg Warranty: 5 Years
High Light:

sliding door bolt lock

,

electric mortise lock



Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel




More details about this product



This product is designed narrow-frame door. Its panel is smaller than usual model of electric bolt lock. The width of the panel of this model is 24.5mm, while other models of are much bigger. Take  VI-801 for example, its width is 35mm. With the narrower panel, this model of elelctric bolt lock is suitable for narrow frame door. Besides, we could customize the security type for this model. Fail-safe or fail-secure, that's all up to your choice.





Paremeter of this product



Items Value
Model VI-807ST
Function Access control system lock
Lock Size 200Lx24Wx39H(mm)
Strike Size 90Lx25Wx2(mm)
Input Voltage DC12V±10%
Working Current 80mA
Weight 0.75kgs
Working Temperature ultra-Low design
Security Type Power off to unlock(Can customized to power off to lock)
Time Delay YES
Signal output YES
Door Type Applicable Wooden door/Glass door/Metal door/Fireproof door/Sliding door
Installation External mounting
OEM Service Ok
Certifications UL/CE/FCC/RoHS
Warranty 5 Years



Related products of this product



If possible, you could also tell me more details about the images about the locks you need. We will help to analyse and try to firgure out the best solution for you.



Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel 0



Our exhibitions



Bellow are the photos taken in the exhibitions we have attented. Thanks again for their visit and showing the interest in our elelctric lock. At exhibition, you could also see this model of electric bolt lock. It we have the chance to meet at exhibition one day, maybe we could talk more and more about electric bolt lock and other electric locks.



Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel 1





Our factory



Our factory is located in Dongguan city. Now we have over 150 workers. Our factory is very reliable and is also the supplier for many trading company in China. Our product catalogies is including electromagnetic lock, elelctric strikers, electric bolt lock, etc. We own the complete production precess from production of steel parts to packaging. We look forward to your visit to our factory. We promiss you an excellent visit expererience.



Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel 2



Some of our customers





Fail Safe Electric Bolt Lock With Timer / Lock Signal , Narrow And Long Panel 3
