| Place of Origin: | Shenzhen ,China |
| Brand Name: | Vians |
| Certification: | MA,ISO9001,UKAS |
| Model Number: | SL-130B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Pls contact us to negotiate price |
| Packaging Details: | 1piece / carton |
| Delivery Time: | 5-12 business days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets / week |
| Open Ways: | Bluetooth App,Fingerprint,Password,Card,Remote Control,Exit Button | Fingerprint Capacity: | 100groups |
|---|---|---|---|
| Card Capacity: | 1000pcs | Sensor Distance: | 0-3mm |
| Use Place: | Office, Hotel ,Workplace And So On | Remote Control: | 2 Groups |
| High Light: | bluetooth smart lock,smartphone door lock |
||
New Hot Product Smart Electric Handle with Phone App Fingerprint for Glass Door
High security identification technology used by thousands of banks around the world Identification using semiconductor FPC biometric fingerprint authentication module Skim temperature,capacitance value,Reject false fingerprints to ensure property security.
Product Parameter
| Product Parameter | Parameter Description |
| Open ways | Mobile APP,fingerprint,password,card,remote control,exit button |
| Fingerprint sensor | semiconductor fingerprint |
| Fingerprint capacity | 1000 pieces |
| Number of passwords | 1000 |
| Support lock type | magnetic lock,motor lock,bolt lock,etc |
| Handle body material | aluminum alloy shell |
| Induction distance | 0-30mm |
| Undervoltage alarm | 4.5V±0.1V |
| Operating Voltage | 4 AAA alkaline batteries(4.8-6.5VDC) |
| Quiescent Current | 〈15μA |
| Operating temperature | -20℃~55℃ |
| Service life | ≥300000Times |
| Use range |
Single open glass door or double open glass door |

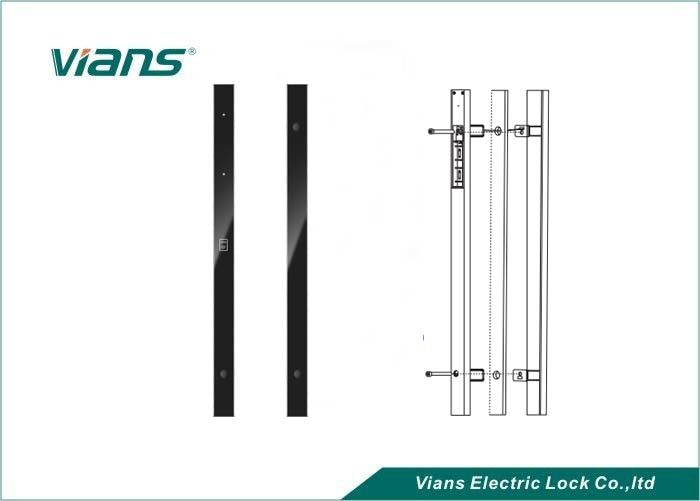

VI-001D Smart Electric Handle
6 OPERATE WAYS : Multi operate choices meet your different needs.
1.APP Opens
2.Fingerprint
3.Password
4.Swipe
5.Exit Button
6.Remote Control
Different Dimensions
400,600,800,1000(mm) could be meet your different requirements.
Electric Handle Installation
Unpack the handle,open the battery case cover
1.Link the front and back handle
2.Pull the usb cable of the front handle through the hole of the door
3.Twist the screw to fasten the front and back handle
4.Link the usb cable of the front handle to the back handle
5.Put into the battery and wait the beep sound from the magnetic lock,and touch the keypad to active the system
6.Fix the battery case cover
Packing list
| S/N | Name | Quantity | Remarks |
| 1 | Outside handle | 1 | |
| 2 | External fake handle | 1 | Single door without this configuration |
| 3 | Inner Handle | 1 | |
| 4 | Internal fake hand | 1 | Single door without this configuration |
| 5 | Control Box | 1 | |
| 6 | User Manual | 1 | |
| 7 | User Card | 5 | |
| 8 | Installation kit | 1 | |
| 9 | AA battery | 2 |
