| Place of Origin: | China |
| Brand Name: | VIANS |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-807ST |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 30 pcs/cartons |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | T/T or |
| Supply Ability: | 3,000pcs per month |
| Fail Secure: | Unlocked When Energized | Face Plate: | 200L*28W*39H(mm) |
|---|---|---|---|
| Voltage: | 12VDC | Feature: | Fail Secure |
| Autolock Time Delay: | 0,3,6,9sec | Weight: | 0.72KG |
| High Light: | drop bolt lock,electric mortise lock |
||

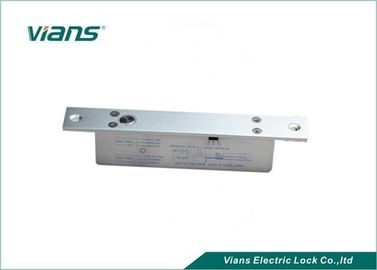

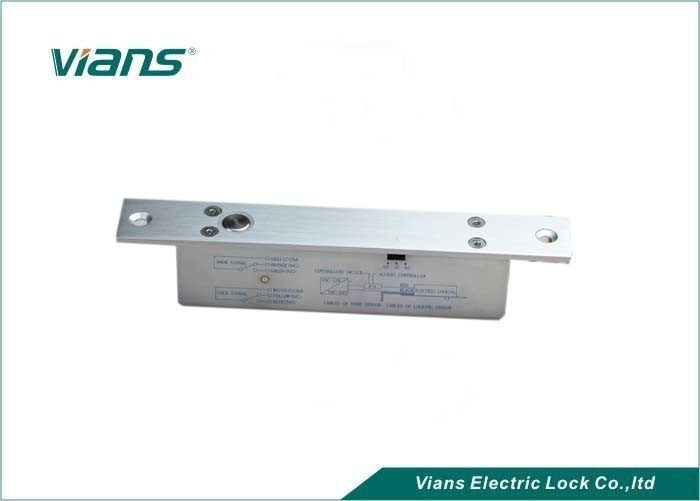

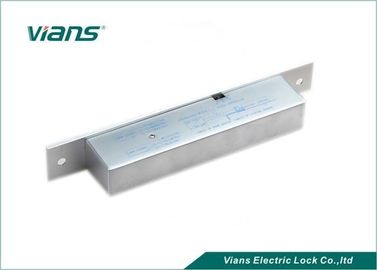

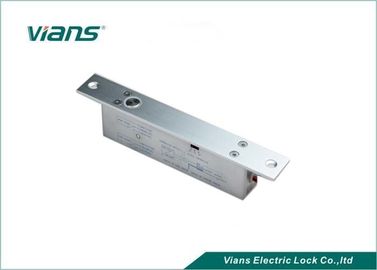

Fail Secure Narrow Panel Electric bolt lock for Intelligent Freezer
Fail Secure Electric Bolt Lock could use for Intelligent Freezers.
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 200Lx24.5Wx39H(mm) |
| Strike Size | 90Lx25Wx2H(mm) |
| Input Voltage | DC12V±10% |
| Start Current | 950mA |
| Working Current | 80mA |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Time Delay | 0,3,6,9sec |
| Signal output | YES |
| Security Type | Locked when energized |
| Weight | 0.72KG |
Features:
1. The photoelectricity control technology, prevent machanical defect
2. Low Power, safety and durable
3. Low current, environmental protection
4. Special photoelectricity control, three steps current application
5. Long Life with 500000 operations
6. MOV provides reverse current protection
7. Superior strength aluminium alloy, solid stain-less steel bolt
8. Autolock Time Delay: 0,3,6,9secs.
9. Door statue signal output contact(NC.COM)
10. Double protection for loading current
11. Certificate: CE, MA
12. Photoelectricity control, low temperature
A: The low current is changed immediately
B: When door frame doesn`t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C:The photoelectricity control technology, prevent the machanical defect.
Features:
Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.
