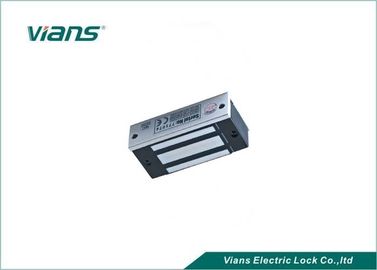

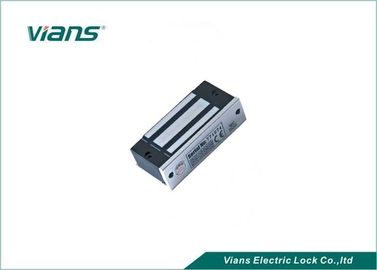

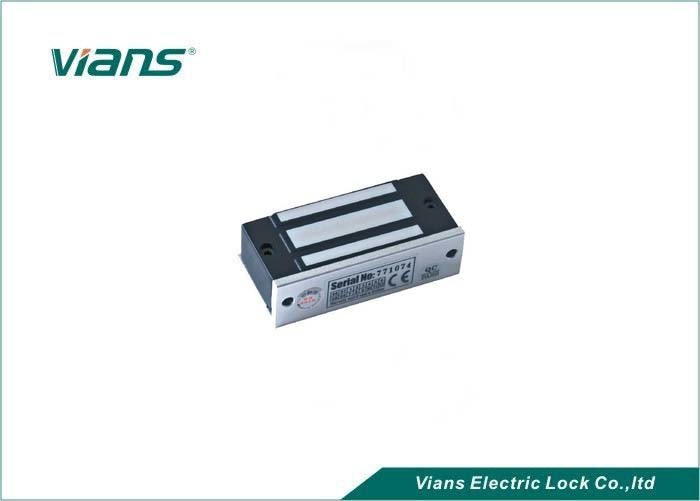

Double insulation door electromagnetic lock DC12V or 24V mini size

Double insulation door electromagnetic lock DC12V or 24V mini size

  • Double insulation door electromagnetic lock DC12V or 24V mini size
  • Double insulation door electromagnetic lock DC12V or 24V mini size
  • Double insulation door electromagnetic lock DC12V or 24V mini size
Double insulation door electromagnetic lock DC12V or 24V mini size
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-60A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 80L*41W*25H(mm) Holding Force: 60kg(120Lbs)
Input Voltage: DC12V Or DC24V Working Current: 12V/220mA 24V/190mA
Operating Temp: -10~+55℃(14-131F) Suitable: Cabinets Drawer
High Light:

electromagnetic door lock

,

electric mag locks



Double insulation door electromagnetic lock DC12V or 24V mini size



Product Overview

Single door  mini magnetic lock for file cabinet or display cabinet,with anti residual magnetism design,anti-wear manufacturing materials.

CE,FCC,ROHS,MA certifications approvaled

Double insulation door electromagnetic lock DC12V or 24V mini size 0

Double insulation door electromagnetic lock DC12V or 24V mini size 1


Double insulation door electromagnetic lock DC12V or 24V mini size 2

Specification

Product Parameter Parameter Description
Size 80L*41W*25H(mm)
Armature Plate Dimension 70L*33W*9H(mm)
Holding Force 160kg(120Lbs)
Input Voltage 12 or 24VDC
Current 12V/300mA
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Signal type output Door status +Lock status signal
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 0.5KG



  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized.
  • Dual Voltage 12 or 24 VDC(optional).


Feature



  • With LED
  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire


Product mounting bracket

Double insulation door electromagnetic lock DC12V or 24V mini size 3
