| Place of Origin: | China |
| Brand Name: | Vians |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-53 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | T/T or |
| Supply Ability: | 3,000pcs per month |
| Lock Size: | L116xW93xH118(mm) | Holding Force: | 60kg(120Lbs) |
|---|---|---|---|
| Suitable For: | All Kinds Of Single & Double Smokeproof Door | Input Voltage: | DC24V |
| Working Current: | 24V/70mA | Operating Temp: | -10~+55℃(14-131F) |
| Weight: | 1.5kg | Type: | Floor And Wall Mount Electric Magnetic Door Holder |
| High Light: | electromagnetic door holder,floor mounted door holder |
||

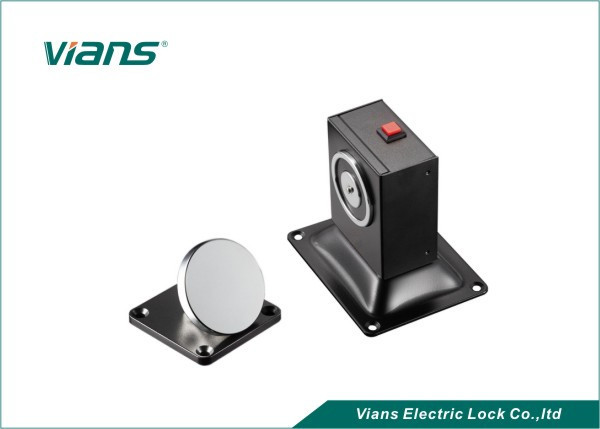

50kg 110lbst electric Magnetic door holder for fire door
Product Overview
Vians door holder with fireproof plastic cover, is low power consumption, more environmental and more duable. Release the fire door automatically in case of fire, build-out release button for testing, build-in MOV reverse current pretection.
Specification
| Product Parameter | Parameter Description |
| Dimensions | 70Lx40Wx85H(mm) |
| Holding Force | 50kg(110Lbs) |
| Voltage | DC24V+10%(12VDC need order) |
| Current Draw | 12V/180mA 24V/70mA |
| Optional | Manual door release button |
| Suitable for | All Kind of Single & Double Smokeproof Doors |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10～+55℃(14-131F) |
| Suitable Humidity | 0~90%(relative humidity) |
| Finishes for Shell | High Temperature Paint and Environmental Protection |
| Finishes for Armature | Zinc |
| Weight | 0.9kg |
Feature
Installation drawing
Packing
| Packing Quantity(PCS/CTN) | 15 |
| Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
| Gross Weight(KG) | 15.75 |
Relater products
Why Choose Us?
How to order?
1. Pls let us know which kind of magnetic door holder you need, the product model and your requirements.
2. We reply to you about the specifications and usage about our products.
3. After discussion, we make a deal.
4. Once the order is confirmed, please pay it soon.
5. The goods will be sent in 3-5 days after the payment.
6. OEM/ODM is welcome.
Payment:
TT, , Paypal
Delivery:
DHL, Fedex, UPS, EMS, etc, by air or by sea
We will provide you the tracking number once the goods sent, and track it until you receive the package.
After-sales service:
1. Best quality and service for all the orders, no matter big or small order.
2. 1 year warranty.
3. Please feel free to contact us if any problem you met.
4. We will provide resolution methods for you.
