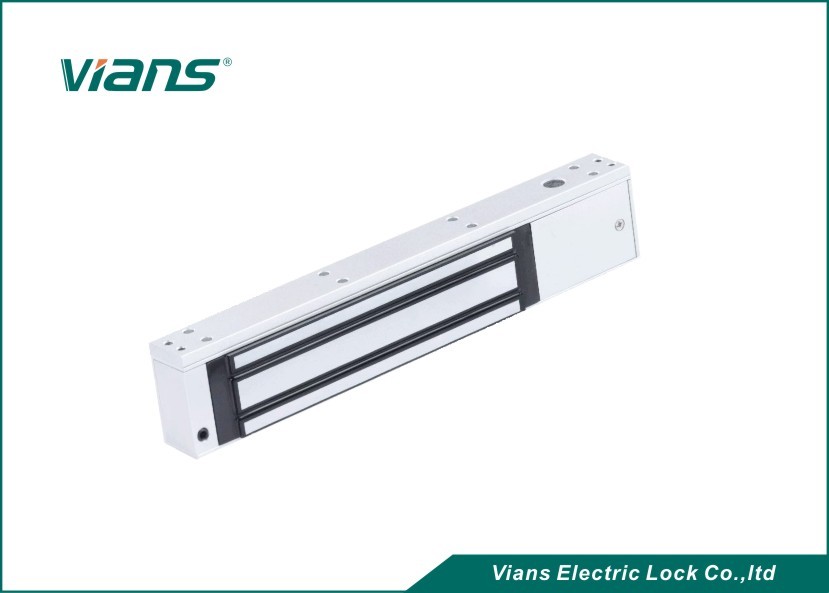

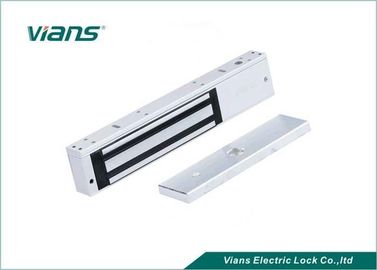

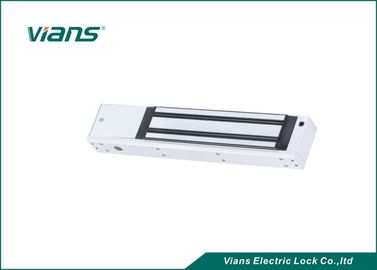

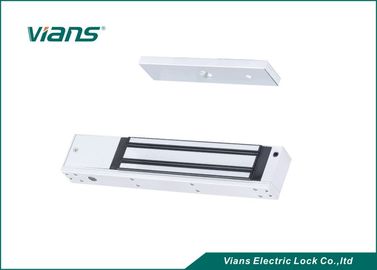

DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors

DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors

  • DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors
  • DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors
  • DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors
  • DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors
DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-280ADS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 250L*47W*26H(mm) Holding Force: 280kg(600Lbs)
Signal Output: Yes Input Voltage: DC12V Or DC24V
Working Current: 12V/480mA 24V/240mA Operating Temp: -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing) Suitable: Wooden Door , Glass Door ,Metal Door , Fireproof Door
Warranty: 5 Years
High Light:

electromagnetic door lock

,

electric mag locks



DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors





Product Overview



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Inbuilt dry contacts lock status signal output ( NO,NC,COM),door status signal output ( NO,NC,COM) is the main selling point.



Specification



Product Parameter Parameter Description
Size 250Lx48.5Wx25H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Bracket Selection U Type,L type,ZL type
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Signal type output Door status +Lock status signal
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1KG





Feature



  • With LED
  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire
  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized.
  • Dual Voltage 12 or 24 VDC(optional).









Installation drawing

DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors 0

Product mounting bracket



DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors 1



Wiring



 DC12V or DC24V Electric Magnetic Lock with LED and Signal Output for Doors 2





Trade show





paste-pic-dp_uuid_xg36u





FAQ



Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.



Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!



Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
