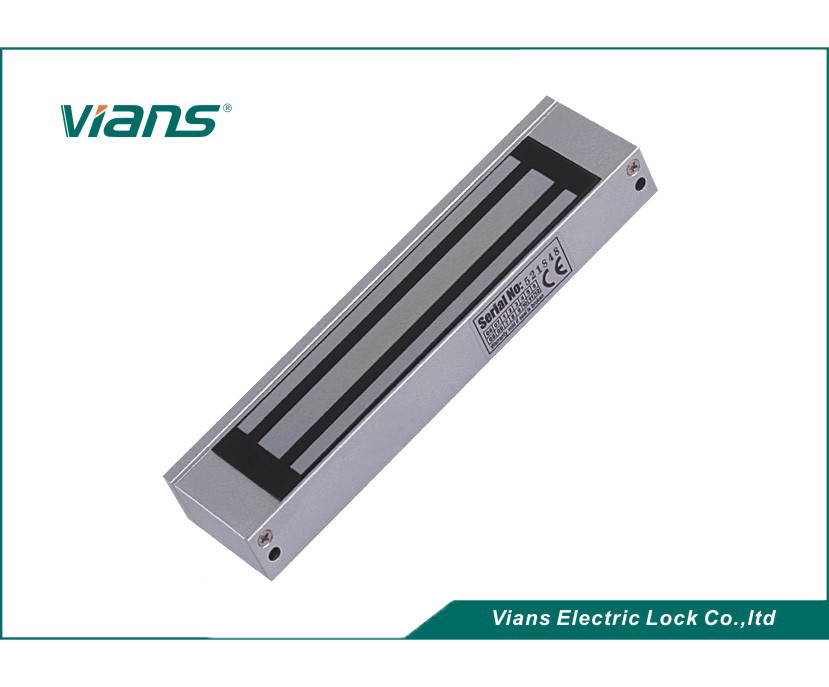

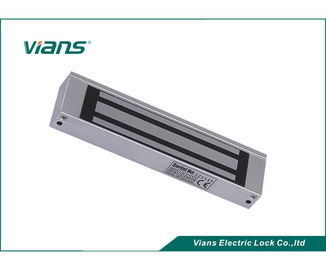

Coil Signal Output 180kgs Electric Magnetic Lock , 350Lbs electromagnetic door latch

Coil Signal Output 180kgs Electric Magnetic Lock , 350Lbs electromagnetic door latch

  • Coil Signal Output 180kgs Electric Magnetic Lock , 350Lbs electromagnetic door latch
  • Coil Signal Output 180kgs Electric Magnetic Lock , 350Lbs electromagnetic door latch
Coil Signal Output 180kgs Electric Magnetic Lock , 350Lbs electromagnetic door latch
Product Details:
Place of Origin: Shenzhen China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-180AS
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: 12PCS/Carton
Delivery Time: Usually 7 days after payment confirmed.
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Holding Force: 350Lbs(500kgs) Coil Material: Pure Copper
Lock Size: 170*42*21mm Plate Size: 130*33*9mm
Weight: 1.2Kgs Current: 12V/300mA Or 24V/150mA
Warranty: 5 Years
High Light:

electromagnetic door lock

,

electric mag locks

5 Years Warranty Pure Copper Coil Signal Output 180kgs 350Lbs Mag Locks



Introduction of Mag Locks

The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly attract iron plate. Even small current will produce huge magnetic, which can effectively lock the door.


Specification


Product ParameterParameter Description
Size250*47*26
Armature Plate Dimension180*38*11
Holding Force280kg(600Lbs)
Input Voltage12 or 24VDC
Current12V/480mA or 24V/240mA
Bracket ShapesL-shaped,ZL-type,U-shaped brackets
Surface Temp≤+20℃
Operating Temp-10~+55℃(14-131F)
Humidity0~90%(non-condensing)
Housing finishAluminum anodizing
Lock FinishZinc
Armature Plate FinishZinc
Weight2KG



Features of this product


  1. 5 years warranty, free OEM service.
  2. Pin-insert type pcb, very convenient.
  3. Dual voltages of 12V/24V.
  4. Avoiding residual magnetism.
  5. Japan imported silicon sheet.
  6. High-strengh alluminum housing, anodizing finish.
  7. Fail-safe, satisfy applicable fire regulations.
  8. Lcok and door signal output.

Installation of mag locks


Installation


installation2



Factroy Informations

As a ISO-9001 certified factory, we have been specialized in producing electric locks for about 10 years, with full experience and professional in high-quality material puchasing , efficient production management , quality control and so on. Besides, we are trying our best to provide a better purchase experience for all of our customers. Every year, we are trying to attend many exhibitions , and also many customers visit our factory for a potential chance to start a new business or try to firgure out a deeper way to coorperate.
We would like to cooperate with companies and people from all over the world, with our high-quality electric locks and professional hard work.

Exhibition
 Our customers

FAQ

Q: How could I get a sample first?
A:  Please contact me for a sample. We would like to provide a sample first, and we could promise that the quality on mass production will be the same as sample.


Q: Is OEM service available?
A: Yes, as a factory, OEM production is one of our main business types. We are providing consistent OEM service to many famous brands arond the world.

Q: How is your payment term?
A: Our usual payment term is T/T, paypal, .  And if necessary, we would like to accept other payment term through our further communication.

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
