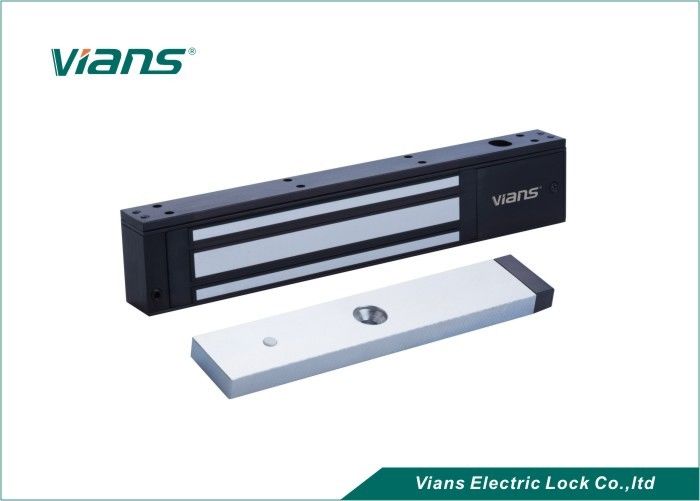

Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V

Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V

  • Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V
Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-280AS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 250L*47W*26H(mm) Armature Plate Dimension: 180L*38W*11H(mm)
Holding Force: 280kg(600Lbs) Signal Output: YES
Input Voltage: DC12V Or DC24V Working Current: 12V/480mA 24V/240mA
Security Type: Power Off To Open Weight: 2kg
Operating Temp: -10~+55℃(14-131F) Humidity: 0~90%(non-condensing)
Material: Aluminum Colour: Black
Surface Temp: ≤+20℃ Suitable: Wooden Door , Glass Door ,Metal Door , Fireproof Door
High Light:

electromagnetic door lock

,

electric mag locks

Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V





Product Overview



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Vians magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.





Specification



Product Parameter Parameter Description
Size 250Lx48.5Wx25H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1KG





Feature



◆ Collinear Load Test 280KG(600Lbs).

◆ Dual Voltage 12 or 24 VDC(optional).

◆ Built-in reverse current protection device (MOV).

◆ Anti residual magnetism design, anti-wear manufacturing materials.

◆ Shell is made of high-strength aluminum alloy, Anodized.

◆ Increase the holding Force, Dual Insulative Hosing.

◆ MA certified products of China / CE certification of EU.

◆ Complete electromagnetic suction working no mechanical failure.





Installation drawing

Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V 0

Product mounting bracket



Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V 1



Wiring



 Black CE approval 280KG 600lb Electric Magnetic Lock , electric lock 12V 2









FAQ



Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.



Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!



Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
