American Standard Stainless Steel DC12V Electric Strike Lock

American Standard Stainless Steel DC12V Electric Strike Lock



Product Overview



The electric strike has the similar working principle as the electric bolt lock,it must work with the mechanical lock.



so the rang of application is small.And it's often used for ordinary wooden door,with the notch of strike sucking the



bolt of door,it can lock or open the door.By embedded installing,our products looks excellent.The electromagnetic



part is made of high quality magnetic material and of the strikes.Morover,our strikes can support the door with 90°



opened.At last,with hardness stainless steel material,our strike could bear 500kg impac pressure.



Product Feature



Strike lock could bear 800kg impact pressure.It also could used for wooden door,with the notch of strike sucking  the bolt of door.



• 1. Bear 500kg impact pressure.
•
• 2. Special design, the lock bolt can adjust the distance.
•
• 3. It is especially suitable for the metal frame with hole for directly installation.
•
• 4. Pass the 500 000 times of aging test.
•
• 5. Products pass the CE, FCC and ROHS certification.

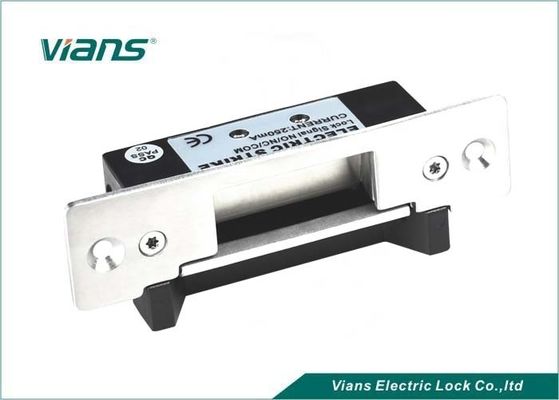

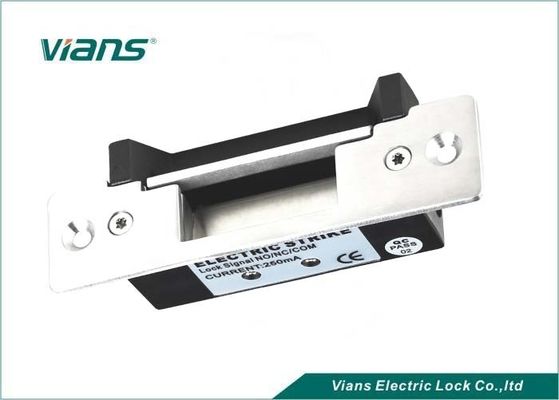

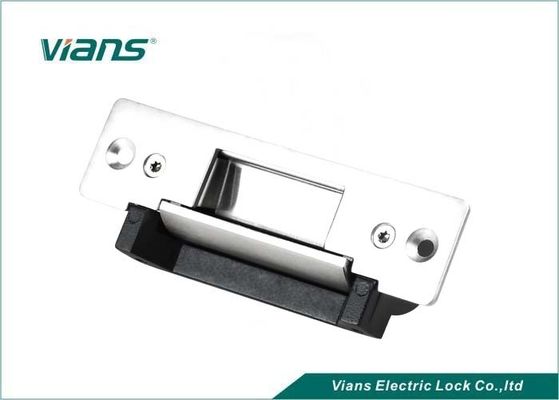

Product Picture





Product Parameter



Product Parameter	Parameter Description
Lock Size	124Lx32Wx33H(mm)
Certificate	CE/FCC/ROHS
Input Voltage	DC12V±10%
Working Current	200mA
Opening Mode	90 Degree Swing Door
Door Type Applicable	Wooden door , Glass door ,Metal door , Fireproof door
Time Delay	NO
Signal output	NO
Security Type	Locked when energized / open when energized
Opening Mode	90 Degree Swing Door
Contact	Dry contact
Surface Temperature	Within +20°C
Material of Housing	Stainless steel
Weight	0.4kg



Installation drawing
