Place of Origin: | China |
Brand Name: | VIANS |
Certification: | CE/ROHS/FCC/MA |
Model Number: | VI-702 |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | negotiation |
Packaging Details: | 60 pcs/cartons |
Delivery Time: | 7 working days after received your payment |
Payment Terms: | T/T , , Paypal |
Supply Ability: | 3,000pcs per month |
Lock Size: | 124Lx32Wx33H(mm) | Security Mode: | Lock Or Open When Power Off |
---|---|---|---|
Input Voltage: | DC12V±10% | Working Current: | 320mA |
Certificate: | CE/FCC/ROHS | Material Of Housing: | Stainless Steel |
Highlight: | 12v strike lock,electric door strike |
Fail secure American standard electric strike (NO/NC adjustable)
The electric strike has the similar working principle as the electric bolt lock, it must work with the
mechanical lock, so the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of door, it can lock or open the door. By embedded installing;
our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long time working, then can prove the normal use of the strikes.
Moreover, our strikes can support the door with 90 degree opened. At last, with hardness stainless steel material, our stike can bear 800kg impact pressure.
Product performance
1. Bear 800kg impact pressure.
2. Special design, the lock bolt can adjust the distance.
3. It is especially suitable for the metal frame with hole for directly installation.
4. Pass the 500 000 times of aging test.
5. Products pass the CE, FCC and ROHS certification.

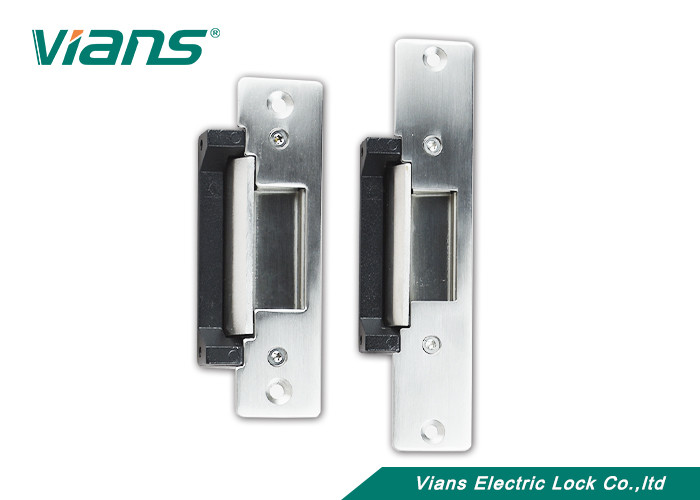

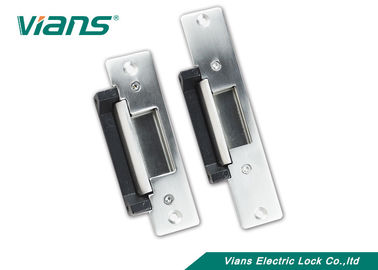

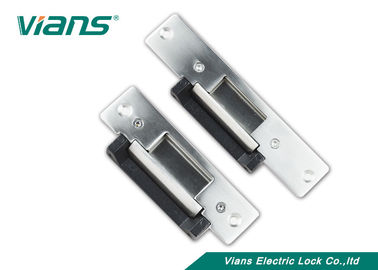

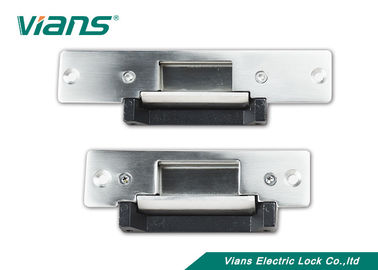

Detail Photos:
Product Parameter
Product Parameter | Parameter Description |
Lock Size | 165Lx32Wx33H(mm) |
Certificate | CE/FCC/ROHS |
Input Voltage | DC12V±10% |
Working Current | 200mA |
Opening Mode | 90 Degree Swing Door |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | NO |
Signal output | NO |
Security Type | Locked when energized / open when energized |
Opening Mode | 90 Degree Swing Door |
Contact | Dry contact |
Surface Temperature | Within +20°C |
Material of Housing | Stainless steel |
Weight | 0.4kg |
Installation drawing
