Place of Origin: | China |
Brand Name: | VIANS |
Certification: | CE/ROHS/FCC/MA |
Model Number: | VI-802ST |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | negotiation |
Packaging Details: | 30 pcs/cartons |
Delivery Time: | 7 working days after received your payment |
Payment Terms: | T/T or |
Supply Ability: | 3,000pcs per month |
Lock Size: | 205 L X 35 W X 40 H(mm) | Strike: | 90 L X 25 W X 2 H (mm) |
---|---|---|---|
Mounting Bracket: | VI-800L/VI-800U | Input Voltage: | DC12V (24V Need To Customized) |
Working Current: | 110mA | Application Door: | Metal Doors, Wooden Doors, Fireproof Doors, Glass Door |
Security Type: | Locked When Energized | Signal Output: | YES |
Time Delay: | YES | Weight: | 0.72KG |
High Light: | sliding door bolt lock,drop bolt lock |

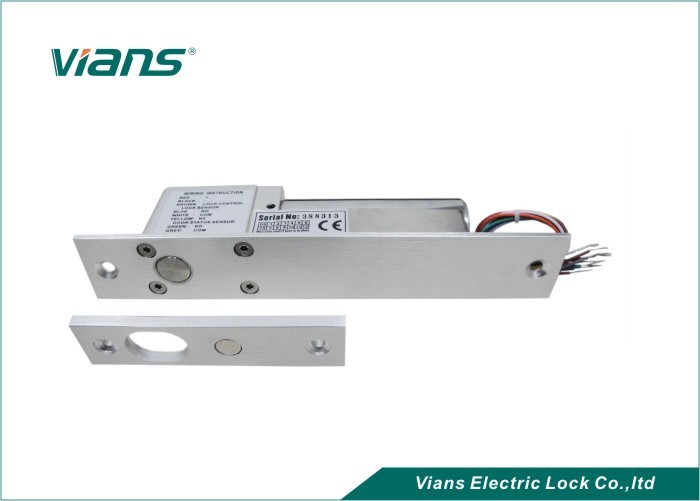

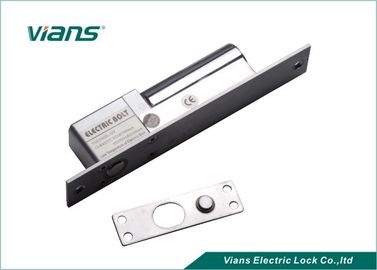

Aluminum Door Standard Bolt Fail Secure Electric Mortise lock, Electric Bolt Lock
Electric Bolt Advantages:
Low Temperature, safe and Durable.
Low Power, Environmental Protection.
Special photoelectricity control
Long Life with 500,000 Operations.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.
Double protection for loading current.
Photoelectricity Control, Low Temperature:
A:Low Electric Current changes immediately;
B:When door frame doesn't coincide with door leaf, door leaf against the bolt, the electric bolt will start the low-power function to bring low temperature.
C:Photoelectricity Control Technology, prevent mechanical defect
Product Parameter
Product Parameter | Parameter Description |
Lock Size | 205Lx35Wx40H(mm) |
Strike Size | 90Lx25Wx2H(mm) |
Input Voltage | DC12V±10% |
Start Current | 950mA |
Working Current | 110mA |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | YES |
Signal output | NO |
Security Type | Locked when energized |
Weight | 0.72KG |
Installation drawing
Relates Products:
Here is our bolt lock series, Any questions Welcome contact us.
Exhibtions:
We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China very
year, welcome you come to visit us :)
