| Place of Origin: | China |
| Brand Name: | VIANS |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-707 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 60 pcs/cartons |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | T/T , , Paypal |
| Supply Ability: | 3,000pcs per month |
| Lock Size: | 110Lx25Wx32H(mm) | Lock Structure: | Stainless Steel |
|---|---|---|---|
| Input Voltage: | DC12V±10% | Working Current: | 200mA |
| Holding Stength: | 500kg | Material Of Housing: | Stainless Steel |
| High Light: | electric strike door lock,12v strike lock |
||

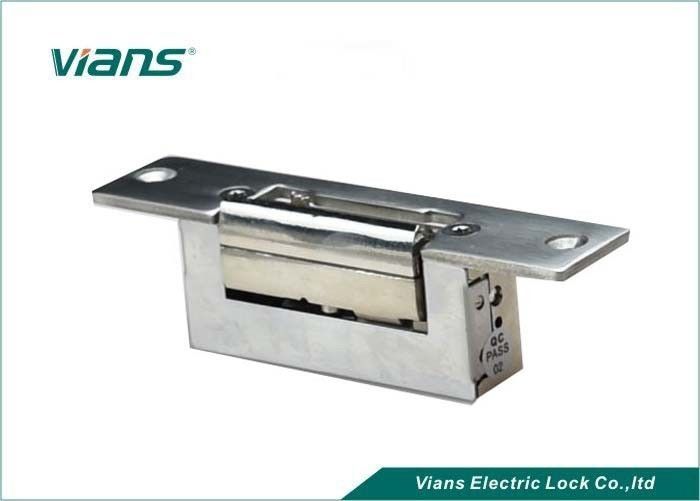

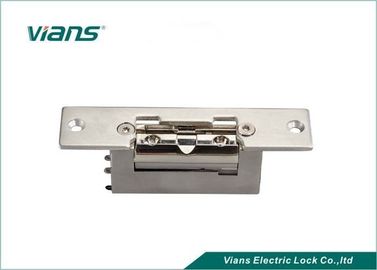

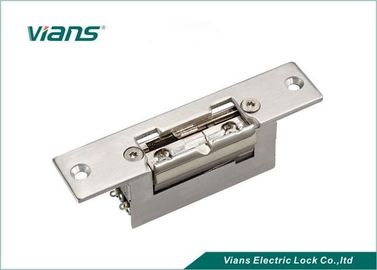

Lock when power off adjustable electric door strike with narrow frame
The VIANS electric lock use the embedded installation and looks beautiful, the electromagnetic part is made of high quality magnetic materials and use special technology processing, so it wouldn't have residual magnetism after a long time used, so it ensure the normal work and use. It support the door with 90 degree opened. Our electric strike use high hardness stainless steel material, so it can bear 500kg impact pressure.
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 110Lx25Wx32H(mm) |
| Certificate | CE/FCC/ROHS |
| Input Voltage | DC12V±10% |
| Working Current | 200mA |
| Opening Mode | 90 Degree Swing Door |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Adjustable | YES |
| Signal output | NO |
| Security Type | Locked when energized / open when energized |
| Opening Mode | 90 Degree Swing Door |
| Contact | Dry contact |
| Surface Temperature | Within +20°C |
| Material of Housing | Stainless steel |
| Weight | 0.4kg |
Product Feature
1. Bear 800kg impact pressure.
2. Special design, the lock bolt can adjust the distance.
3. It is especially suitable for the metal frame with hole for directly installation.
4. Pass the 500 000 times of aging test.
5. Products pass the CE, FCC and ROHS certification.
Installation drawing
Relates Products:
Here is our electric lock series, Any questions Welcome contact us.
Our Certificate:
All our products pass CE/FCC/Rohs. Below is our certificate please kindly check:
