Access cotrol security Magnetic electric deadbolt lock with time delay

Access cotrol security Magnetic electric deadbolt lock with time delay

  • Access cotrol security Magnetic electric deadbolt lock with time delay
  • Access cotrol security Magnetic electric deadbolt lock with time delay
Access cotrol security Magnetic electric deadbolt lock with time delay
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-807ST
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T , , Paypal
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 200L*24.5W*39H(mm) Strike: 90L*25W*2H(mm)
Input Voltage: DC12V±10% Start Current: 950mA
Working Current: 110mA Door Type Applicable: Wooden Door , Glass Door ,Metal Door , Fireproof Door
Security Type: Locked When Energized Weight: 0.75KG
Signal Output: Yes Time Delay: Yes
High Light:

sliding door bolt lock

,

electric mortise lock

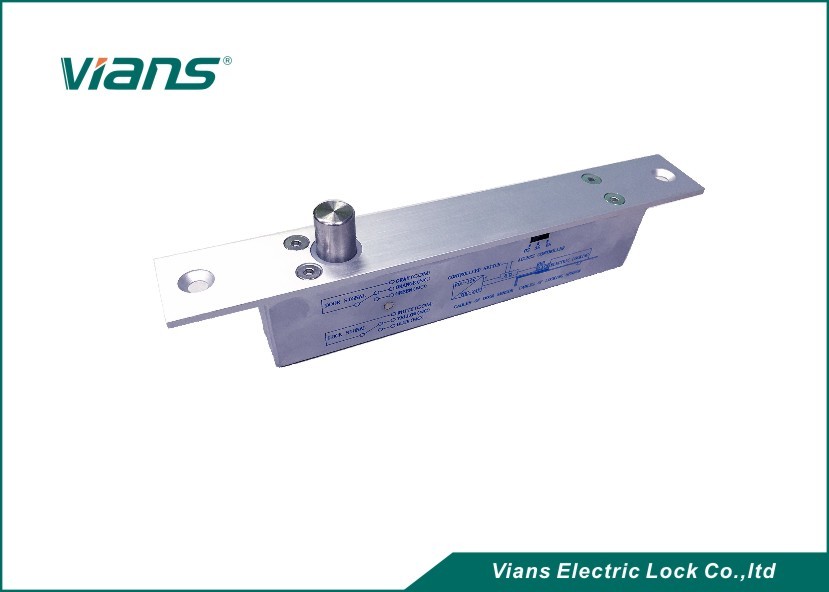

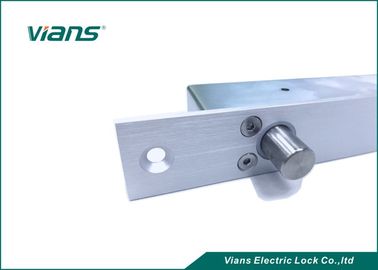

Access cotrol security Magnetic electric deadbolt lock with time delay



Electric bolt lock is kind of electric control locks, it works by means of extending or retracting the lock bolt with electric current. The vians electric bolt lock use the microprocessor chip to control electric ciruit, so it decrease the power consumption and really has the ultralow temperature function, After 500000 times of test, we can assure our locks are more stable, more environmentally friendly and durable, electric bolt lock is designed mainly for glass door, wooden door and metal door. it is suitable for bidirectional door and sliding door, becomes the best choice of access control automation management.





Technical Parameter





Product Parameter Parameter Description
Lock Size 200L*24.5W*39H(mm)
Strike 90L*25W*2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
working Current 110mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Security Type

Locked when energized

Unlocked when energized(need order)

Weight 0.75KG
Signal output YES
Time delay YES





Products Feature



1. Photoelectric control technology, prevent mechanical failure.



2. Ultra-low temperature design, Safer and more durable.



3. Ultra-low-power design, More durable and more environmentally friendly.



4. More than 500 000 working times.



5. Built-in reverse current and prevention device (MOV).



6. Intelligent single chip configuration, three types current application.



7. High strength aluminum alloy lock body, stainless steel lock bolt.



8. Products pass the EU CE and china MA qualified certification.





Installation drawing
