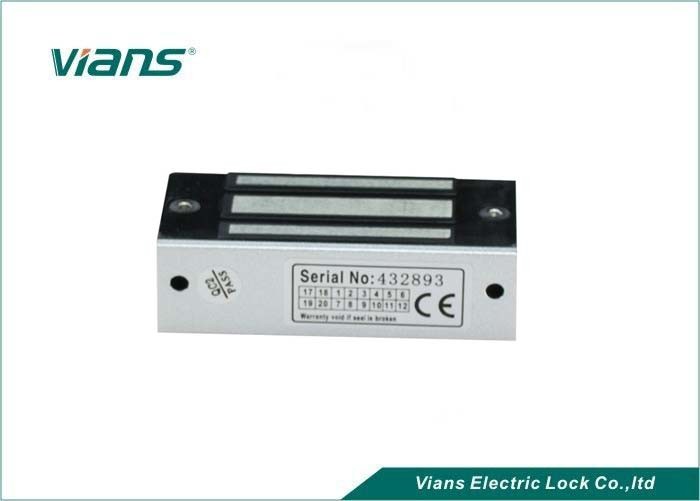

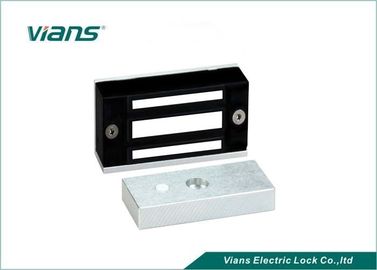

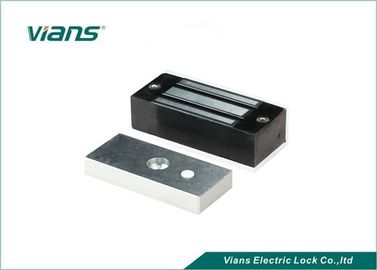

60 Kg 120lbs Electric Magnetic Lock Small Size DC12V For Drawer / Cabinets

60 Kg 120lbs Electric Magnetic Lock Small Size DC12V For Drawer / Cabinets

  • 60 Kg 120lbs Electric Magnetic Lock Small Size DC12V For Drawer / Cabinets
  • 60 Kg 120lbs Electric Magnetic Lock Small Size DC12V For Drawer / Cabinets
  • 60 Kg 120lbs Electric Magnetic Lock Small Size DC12V For Drawer / Cabinets
60 Kg 120lbs Electric Magnetic Lock Small Size DC12V For Drawer / Cabinets
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-60A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 80L*41W*25H(mm) Holding Force: 60kg(120Lbs)
Input Voltage: DC12V Or DC24V Working Current: 12V/220mA 24V/190mA
Operating Temp: -10~+55℃(14-131F) Weight: 0.5kg
Suitable: Cabinets Drawer
High Light:

electromagnetic door lock

,

electric mag locks

60kg 120lbs Mini Cabinets Electric Lock Small Magnetic Lock for Drawer​




  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized.
  • Dual Voltage 12 or 24 VDC(optional).

Product Overview



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Inbuilt dry contacts lock status signal output ( NO,NC,COM),door status signal output ( NO,NC,COM) is the main selling point.



Specification



Product Parameter Parameter Description
Size 80L*41W*25H(mm)
Armature Plate Dimension 70L*33W*9H(mm)
Holding Force 160kg(120Lbs)
Input Voltage 12 or 24VDC
Current 12V/300mA
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Signal type output Door status +Lock status signal
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 0.5KG





Feature





  • With LED
  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire
