|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||12 pcs/cartons|
|Delivery Time:||1-7 working days after received your payment|
|Supply Ability:||5,000pcs per month|
|Lock Size:||250L*47W*26H(mm)||Armature Plate Dimension:||180L*38W*11H(mm)|
|Input Voltage:||DC12V/DC24V (adjustable)||Holding Force:||280kg(600Lbs)|
|Security Type:||Fail-safe||Singal Output:||Yes|
|Working Voltage:||12V/24V||Door Type Applicable:||Wooden Door , Glass Door ,Metal Door , Fireproof Door|
electromagnetic door lock,
electric mag locks

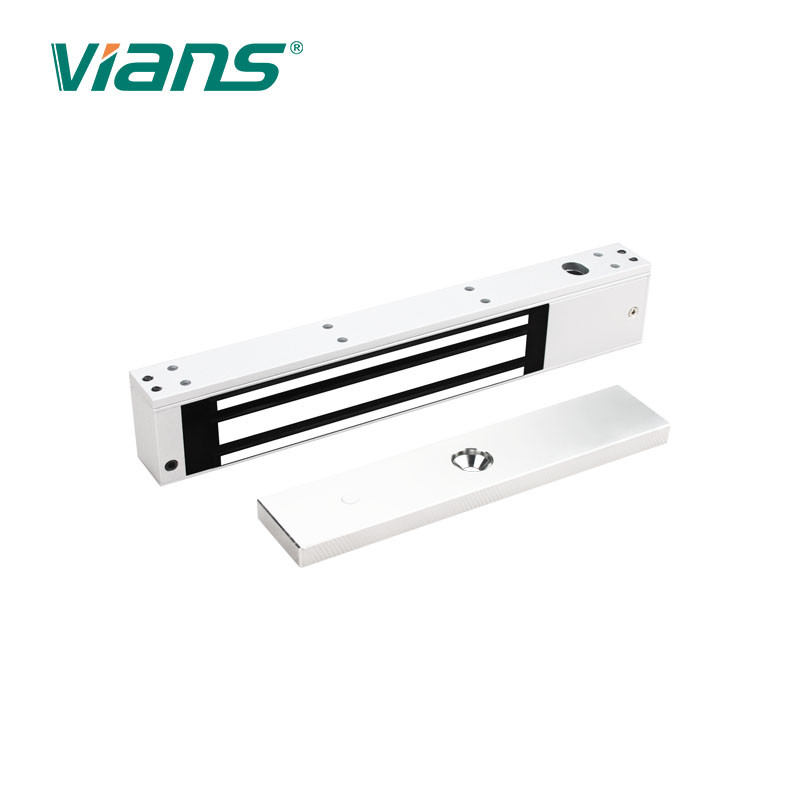

600lbs electric magnetic lock door,280kg maglock with feedback and led
Advantages & Services
Magnetic lock will produce huge magnetic force,which can effectively control the door.
|Product Parameter||Parameter Description|
|Armature Plate Dimension||180L*38W*11H(mm)|
|Input Voltage||DC12V or DC24V|
|Working Current||12V/480mA 24V/240mA|
|Door Type Applicable||Wooden door , Glass door ,Metal door , Fireproof door|
|Security Type||Power off to open|
1.Fail Safe to Unlock.
2.Zero Residual Magnetism.
3.Optional Bracket: ZL,L, U,F Bracket .
4.Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
5.LED Indicates the Door Status.
6.Lock Status sensor (NO/NC/COM).
7. High Strength Material, Anodized Aluminum Housing.
8. Easy installation without special tools.
9, Certificate of approval: UL/CE/FCC/ROHS
Wiring of Lock
1. 12V-DC input:
Positive pole of 12V-DC connect to the terminal marked with “+”
Negative pole of 12V-DC connect to the terminal marked with “-”
Ensure the Voltage Selector is switched to 12V-DC.
2. 24V-DC input:
Positive pole of 24V-DC connect to the terminal marked with “+”
Negative pole of 24V-DC connect to the terminal marked with “-”
Ensure the Voltage Selector is switched to 24V-DC.
3. Wiring of Door-State Detector
The overload current of relay contact is 1amp. when the input is 24V-
DC, overload is strictly prohibited. Connect the normal-open circuit to the COM and NC for getting switch-over signal.
But connect the normal-close circuit to the COM and NO for getting switch-over signal.
Shenzhen Vians Electric Lock Company is one of the leading professional electric locks manufacturers in China with 14 years OEM experience.
Our mainly products are Magnetic Lock,Electric Bolt Lock,Electric Strike,Electric Rim Lock,Electric Lock Bracket,Door Opener,Switch,Bluetooth Smart Lock and so on.
We offer the 5 years warranty and do the FREE OEM solution for you.
1. Q: Are you a factory?
A: Yes, we are a professional factory of electric locks in China. We are in this electric lock industry for about 10 years.
2. Q:Can you print our logo on the product?
A:Yes, we can print your logo on product, and it is free. We have been providing such OEM service for many global brands for many years. We’re experienced to meet your requirement.
3. Q:How can you control your product quality?
A: Quality is the priority. We always attach great importance to quality controlling from the very beginning to the end. We have professional QC to inpect goods before shpping. If any quality problem were to occur(though non have and we don’t anticipate any) you would simple return the prodct for a full refund. We also have alibaba credit guarantee service.
4. Q:How to you ship the product?
A: If no special requirement from customers, we usually ship by express for samll order, and ship by ship or air for big order.
