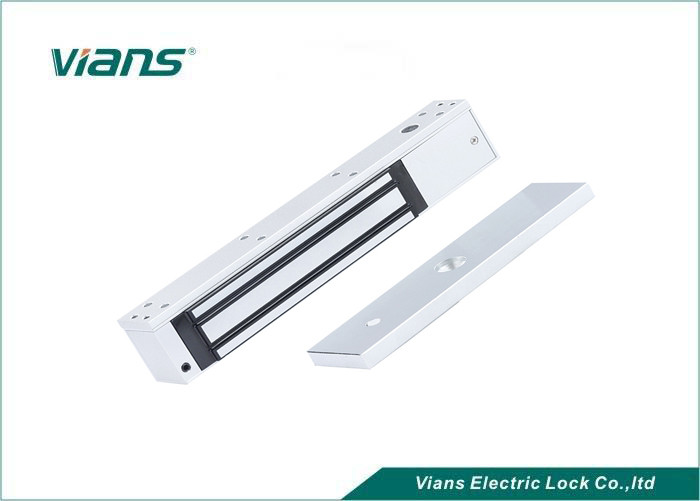

Product description



Magnetic lock is using the principle of electromagnetic, when current passes through the silicon steel sheet, tightly absorb electromagnetic lock will produce a powerful suction adsorption iron plate to achieve the effect of locking the door when you leave.





Specification



Product Parameter	Parameter Description
Lock Size	250L*47W*26H(mm)
Armature Plate Dimension	180L*38W*11H(mm)
Holding Force	280kg(600Lbs)
Signal output	YES
Input Voltage	DC12V or DC24V
Working Current	12V/480mA 24V/240mA
Door Type Applicable	Wooden door , Glass door ,Metal door , Fireproof door
Security Type	Power off to open
Weight	2kg





Features



1.Fail Safe.

2.Zero Residual Magnetism.

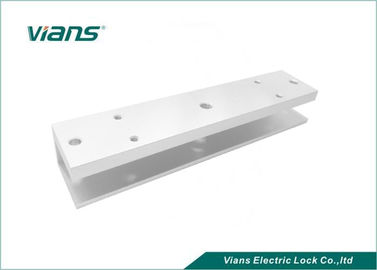

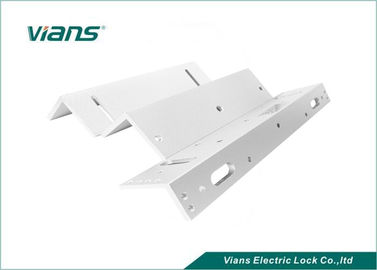

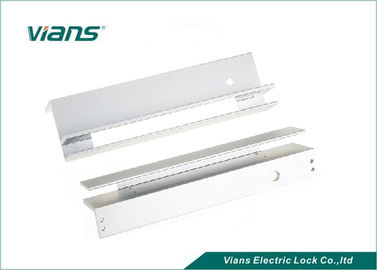

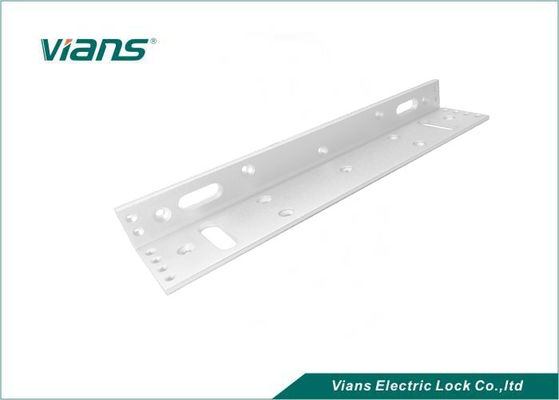

3.Optional Bracket: ZL,L, U,F Bracket .

4.Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.

5.LED Indicates the Door Status.

6.Lock Status sensor (NO/NC/COM).

7. High Strength Material, Anodized Aluminum Housing.

8. Easy installation without special tools.

9, Certificate of approval: CE/FCC/ROHS





Wiring of Lock





1. 12V-DC input:

Positive pole of 12V-DC connect to the terminal marked with “+”

Negative pole of 12V-DC connect to the terminal marked with “-”

Ensure the Voltage Selector is switched to 12V-DC.

2. 24V-DC input:

Positive pole of 24V-DC connect to the terminal marked with “+”

Negative pole of 24V-DC connect to the terminal marked with “-”

Ensure the Voltage Selector is switched to 24V-DC.

3. Wiring of Door-State Detector

The overload current of relay contact is 1amp. when the input is 24V-

DC, overload is strictly prohibited. Connect the normal-open circuit to the COM and NC for getting switch-over signal.

But connect the normal-close circuit to the COM and NO for getting switch-over signal.
