| Place of Origin: | China |
| Brand Name: | Vians |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-280ES |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T or |
| Supply Ability: | 6,000pcs per month |
| Lock Size: | 229L*38W*27H(mm) | Holding Force: | 280kg(600Lbs) |
|---|---|---|---|
| Input Voltage: | DC12V Or DC24V | Working Current: | 12V/480mA 24V/240mA |
| Security Type: | Power Off To Open | Signal Monitored: | Yes |
| Lock Finish: | Electroplated Zinc | Open The Door: | 180 Degree |
| High Light: | electromagnetic door lock,electric mag locks |
||

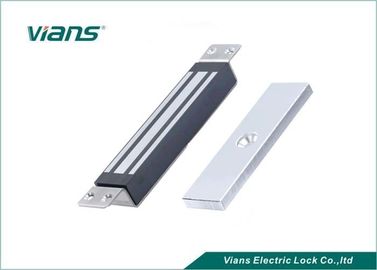

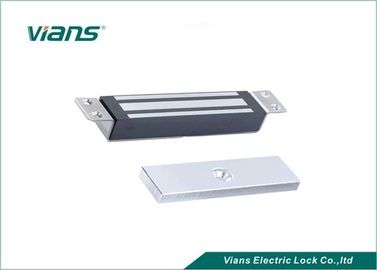

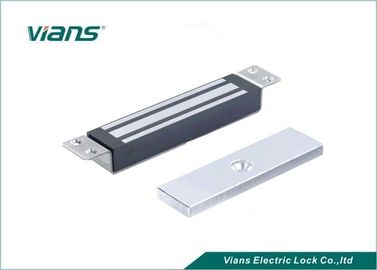

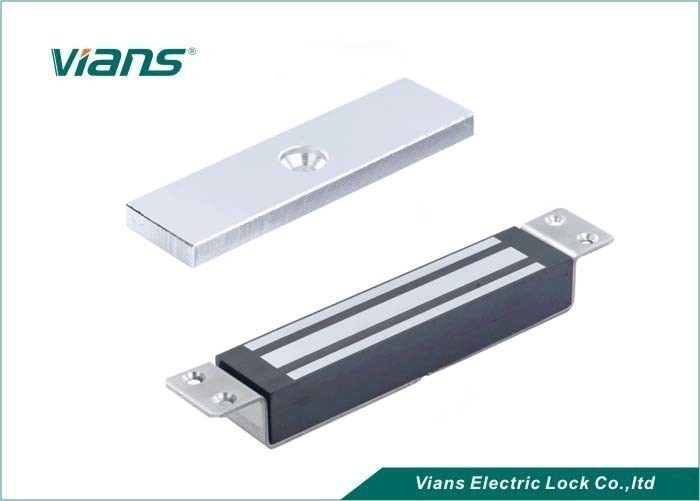

180 Degree Opening The Door Electric Magnetic Lock ,Embeded in The Door EM Lock
Product Overview
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Vians magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
Specification
| Product Parameter | Parameter Description |
| Armature Plate Dimension | 229L*38W*27H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/500mA or 24V/250mA |
| signal output | Yes |
| Time delay | 0s/3s/6s/9s |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2.1KG |
Feature
Installation drawing
Product mounting bracket
Wiring
FAQ
