Place of Origin: | China |
Brand Name: | Vians |
Certification: | CE/ROHS/FCC/MA |
Model Number: | VI-500ADS |
Minimum Order Quantity: | 12pcs |
---|---|
Price: | negotiation |
Packaging Details: | 12pcs/carton |
Delivery Time: | 7 working days after payment confirmed |
Payment Terms: | T/T or |
Supply Ability: | 3,000pcs per month |
Lock Size: | 265L*71W*40H(mm) | Armature Plate Dimension: | 185L*60W*13H(mm) |
---|---|---|---|
Security Type: | Power Off To Open (fail Safe) | Weight: | 4.5 KG |
Door Type: | Wooden/Glass/Metal/Fireproof Door | Holding Force: | 500KG (1200Lbs) |
Highlight: | electromagnetic door lock,electric mag locks |

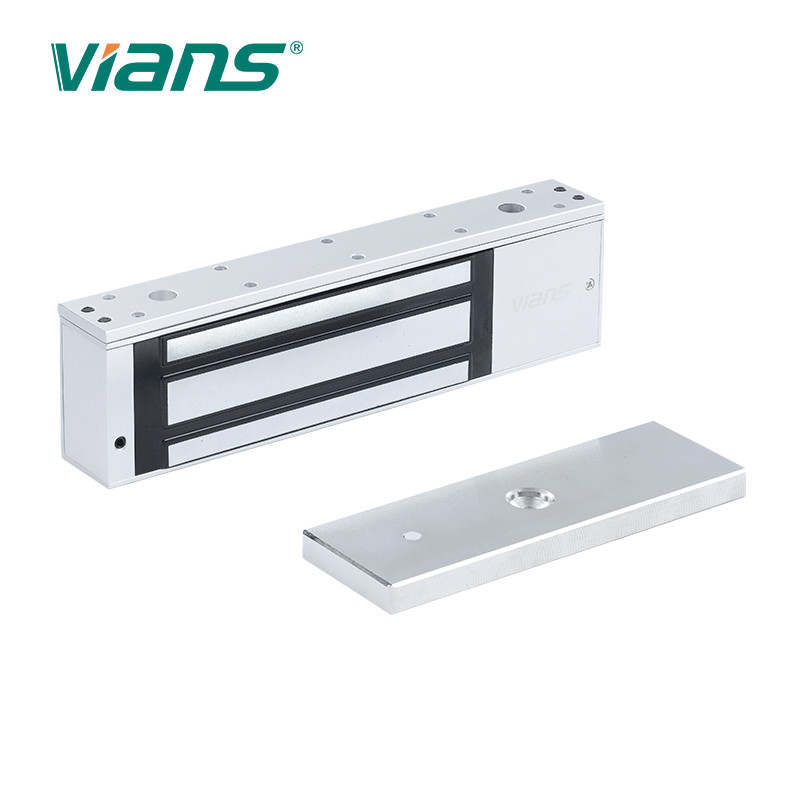

1200Lbs High Security Door Magnetic Lock Security Lock Signal and Door Signal
Vians Mag Locks Introduction :
Vians magnetic locks adopt international leading production equipment ,which not only makes our locks' antioxidant capacity of the surface reach the international leading level ,also helps to increase the holding force .Vians Magnetic lock used anti-wear manufacturing materials , the anti residual magnetism design avoid mechanical failure .
Specification
Product Parameter | Parameter Description |
Size | 265L*71W*40H(mm) |
Armature Plate Dimension | 185L*60W*13H(mm) |
Holding Force | 500kg (1200Lbs) |
Input Voltage | DC12V or 24V |
Current | 12V/600mA or 24V/300mA |
Bracket Selection | U ,ZL type bracket |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃(14-131F) |
Humidity | 0~90%(non-condensing) |
Signal type output | Lock status signal and Door status signal |
Lock Finish | Zinc |
Security Type | Power off to open (fail safe) |
Weight | 4.5 KG |
Features :
Factory Overview
Our Vians is one of the leading professional electric lock manufactures in China,which was established in 2007. We are dedicated to Magnetic Lock,Electric Bolt Lock,Electric Strike,Electric Rim lock and Exit button and so on.and passed CE ,MA certification and related quality inspection. So far our products have been exported to more than 60 countries and regions which are widely used in airport,subway,bank,prisons ,intelligent Building and community .
FAQ
Q: Do you produce this maglocks by your own factory?
A: Yes, our electric lock are all independent design,development and production. Our factory is located in Dongguan City close to Shenzhen.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
