| Place of Origin: | China |
| Brand Name: | Vians |
| Certification: | CE/ROHS/FCC/MA |
| Model Number: | VI-52 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | T/T or |
| Supply Ability: | 3,000pcs per month |
| Lock Size: | 70Lx40Wx85H(mm) | Holding Force: | 60kg(120Lbs) |
|---|---|---|---|
| Signal Output: | No | Input Voltage: | DC24V |
| Working Current: | 24V/70mA | Operating Temp: | -10~+55℃(14-131F) |
| Weight: | 0.5kg | Suitable: | Fire Door |
| High Light: | electromagnetic door holder,wall door holder |
||

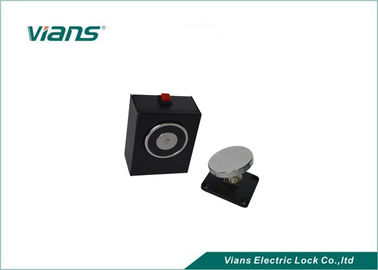

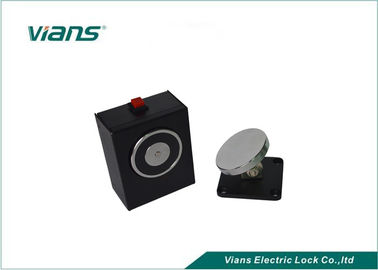

Power off to Open 110Lbs floor mounted Magnetic door holder for fireproof / Glass / Metal door
Magnetic Door Stopper Product Overview
Vians door holder with fireproof plastic cover, is low power consumption, more environmental and more duable. Release the fire door automatically in case of fire, build-out release button for testing, build-in MOV reverse current pretection.
Specification
| Product Parameter | Parameter Description |
| Dimensions | 70Lx40Wx85H(mm) |
| Holding Force | 50kg(110Lbs) |
| Voltage | DC24V+10%(12VDC need order) |
| Current Draw | 12V/180mA 24V/70mA |
| Optional | Manual door release button |
| Suitable for | All Kind of Single & Double Smokeproof Doors |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10～+55℃(14-131F) |
| Suitable Humidity | 0~90%(relative humidity) |
| Finishes for Shell | High Temperature Paint and Environmental Protection |
| Finishes for Armature | Zinc |
| Weight | 0.9kg |
Feature
Installation drawing
Packing
| Packing Quantity(PCS/CTN) | 15 |
| Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
| Gross Weight(KG) | 15.75 |
