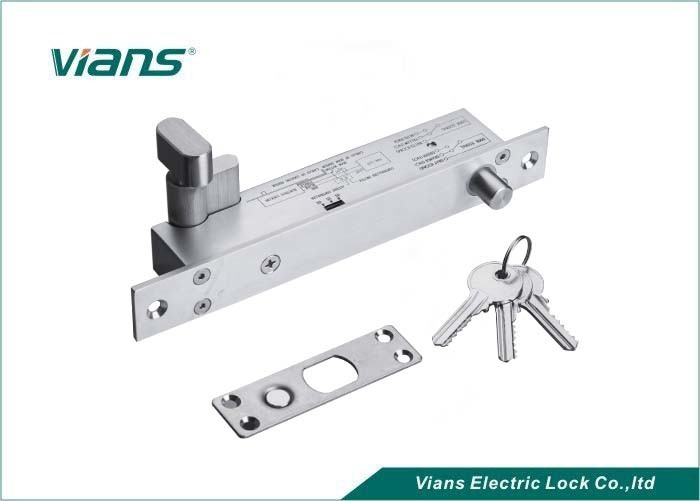

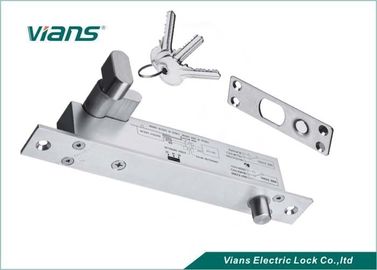

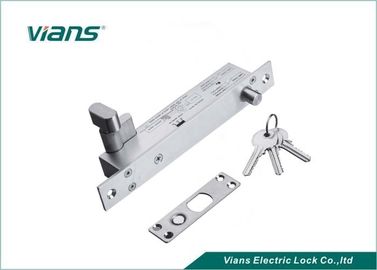

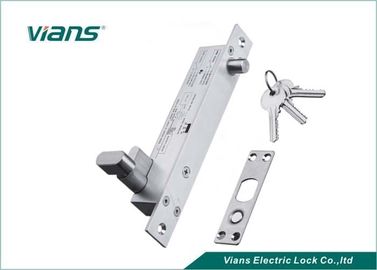

Heavy Door High Security Electric Bolt Lock with Keys for important place

Heavy Door High Security Electric Bolt Lock with Keys for important place

  • Heavy Door High Security Electric Bolt Lock with Keys for important place
  • Heavy Door High Security Electric Bolt Lock with Keys for important place
  • Heavy Door High Security Electric Bolt Lock with Keys for important place
  • Heavy Door High Security Electric Bolt Lock with Keys for important place
Heavy Door High Security Electric Bolt Lock with Keys for important place
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-810ST
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 10 pcs/carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Face Plate: 200L*25W*38H(mm) Strike: 90 L*23W*2.5H(mm)
Signal Output: NO /NC/COM Time Delay: 0/3/6/9 Sec
Voltage: 12V DC Current: Start 950mA, Standby 150mA
Fail Secure: Fail Safe And Fail Secure (Option) Weight: 1.6KG
Certificate: CE,ROHS,FCC
High Light:

sliding door bolt lock

,

electric mortise lock



Heavy Door High Security Electric Bolt Lock with Keys for important place



VIANS Electric bolt lock with keys VI-810ST is Adjustable fail-safe (power to lock) or fail-secure (power to open).

 1


Adjustable fail-safe (power to lock) or fail-secure (power to open).


 2


Adjustable to fail-secure (power to open) for high security places. Adjustable to fail-safe (power to lock) for public places.


 3


Built-in door open or door close state detection output point (250mA: N.C./ N.O.).


 4


Suitable for 180° door.


 5


Stainless steel bolt is able to sustain more than 800 kg of shear force.


 6


Adjustable to fail-secure (power to open) to achieve long unlock state function.


 7


Built-in oval cylinder as unlocking device. Use of oval cylinder to unlock when power cut occurred or during emergency.


 8


Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.


 9


Operation temperature: 0~90℃; Humidity: 85%Rh max.


10 Dimensions: Body: 200mm(L) x 25mm(W) x 38mm(D)
Strike plate : 90mm(L) x 23mm(W) x 2.5mm(D)
Bolt : 16mm(Throw) x 12.7mm(Diameter)



Product Parameter


Product Parameter Parameter Description
Lock Size  200L*25W*38H(mm)
Strike Size  90L*23 W*2.5H(mm)
Bolt 16MM X 12.7MM
Start Current  880mA
Working Current  320mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay 0,3,6,9sec
Signal output YES
Security Type Key Open available
Weight 1.6KG



Features:

Photoelectricity Controling,no machanical defect.
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Long Life with 500000 cycles.
MOV Provides Reverse Current Protection.
Special photoelectricity control,three steps current application.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Working with cylinder cannot be copied,do increase security.
The humanized design of Led helps to indicate the working status of lock.
The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.
With complete accessories,available for any doors.
Certificate:CE&MA.
Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.


Installation drawing


Heavy Door High Security Electric Bolt Lock with Keys for important place 0
Heavy Door High Security Electric Bolt Lock with Keys for important place 0Heavy Door High Security Electric Bolt Lock with Keys for important place 0

Heavy Door High Security Electric Bolt Lock with Keys for important place 3

Install At The Side Of The Door


Heavy Door High Security Electric Bolt Lock with Keys for important place 4
