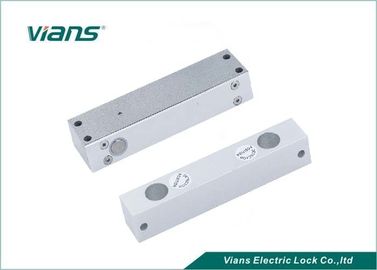

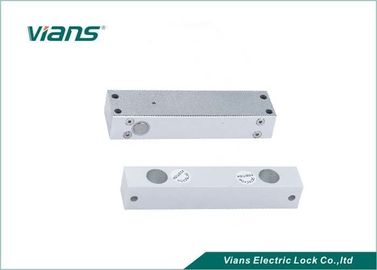

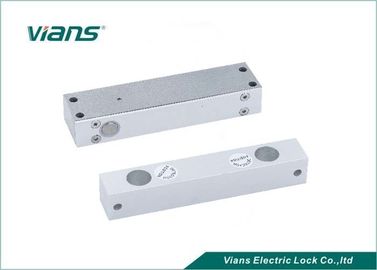

8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door

8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door

  • 8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door
  • 8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door
  • 8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door
8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door
Product Details:
Place of Origin: China
Brand Name: VIANS
Certification: CE/ROHS/FCC/MA
Model Number: VI-806ST
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 30 pcs/cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Fail Safe: Lock When Energized Lock Size: 148.5L*24.5W*39H(mm)
Strike: 148.5L*24.5W*2H(mm) Voltage: DC12V
Surface Temp: Low Temperature Special Designed: Tested To 500000 Operations
Time Delay: 0,3,6,9s
High Light:

sliding door bolt lock

,

electric mortise lock

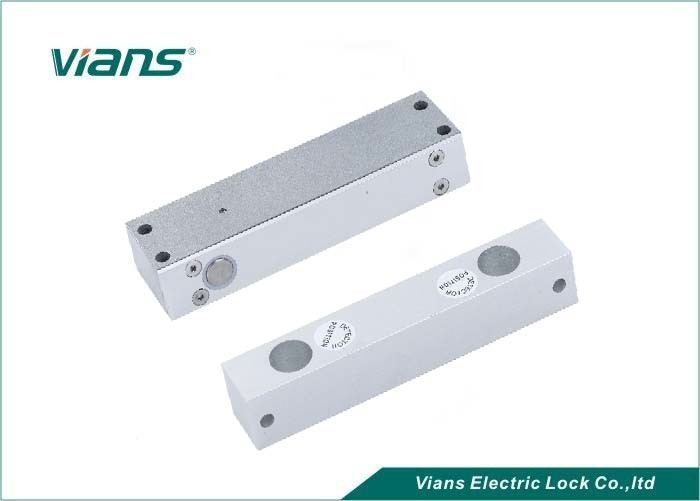

8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door



VI-806ST  works with DC 12V and its lock bolt has self-lock function.There are circuits for door and bolt sensor in the lock which guiding out for sensoring the lock and door working status.the adjusting jumper for time delay set in the middle of the lock,and have 3 choice(0s,3s,6s)

8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door 0


Advantage of the products





> Low Temperature, safe and Durable.

> Low Power, Environmental Protection.

> Special photoelectricity control,three steps current application.

> Long Life with 500000 cycles.

> MOV Provides Reverse Current Protection.

> Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

> Autolock Time Delay: 0,3,6,9sec.

> Door statue signal output contact(NC.COM).

> Double protection for loading current.

> Auto-relock if no Action within 5 secs.

> Certificate:CE and MA.

> Photoelectricity Control,Low Temperature,

> A:The Low Current is Changed immediately;

> B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.

> C:The Photoelectricity Control Technology,prevent the machanical defect.





Product Parameter



Product Parameter Parameter Description
Lock Size 148.5Lx24.5Wx39H(mm)
Strike Size 148.5Lx24.5Wx20H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 80mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay 0,3,6,9sec
Signal output YES
Security Type Locked when energized
Weight 0.86KG



Features:


Secure mode: The door will lock while supplied with power, and unlock without power.


Especially suitable for glass doors.


It is made from durable and high aluminium alloy material, durable for use.


Special circuit design, the door will unlock until the power is cut off.


With no external interference, making it more stable and safer.





Installation drawing



8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door 1



8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door 2
8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door 28 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door 2

8 Wires Drop Bolt Lock with Lock Door Status Detection for Wooden Glass Door 5
