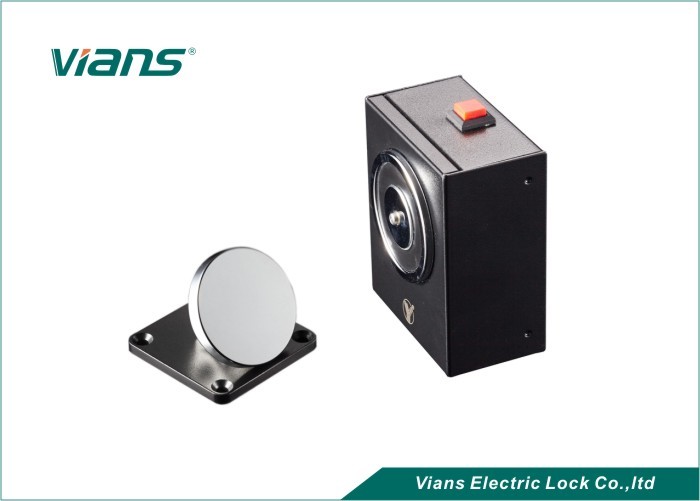

Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors

Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors

  • Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors
  • Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors
  • Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors
Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-52
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 70Lx40Wx85H(mm) Holding Force: 60kg(120Lbs)
Signal Output: No Input Voltage: DC24V
Working Current: 24V/70mA Operating Temp: -10~+55℃(14-131F)
Weight: 0.5kg Suitable: Fire Door
High Light:

floor mounted door holder

,

wall door holder

Metal Cover 24V floor mounted Magnetic door holder for fire door





Product Overview



Vians door holder with fireproof plastic cover, is low power consumption, more environmental and more duable. Release the fire door automatically in case of fire, build-out release button for testing, build-in MOV reverse current pretection.



Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors 0







Specification



Product Parameter Parameter Description
Dimensions 70Lx40Wx85H(mm)
Holding Force 50kg(110Lbs)
Voltage DC24V+10%(12VDC need order)
Current Draw 12V/180mA 24V/70mA
Optional Manual door release button
Suitable for All Kind of Single & Double Smokeproof Doors
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection
Finishes for Armature Zinc
Weight 0.9kg





Feature



  • Col linear Load: 50kg, 110pounds.
  • The Standard Voltage is 24VDC when finished.
  • MOV Provides Reverse Current Protection.
  • Low Power Consumption, Environmental Protection.
  • Anti-Residual Magnetism Design.
  • Professional Design, Dual Insulate Housing.
  • Automatically close the smoke proof door when fire happens.
  • Manual door release button.
  • CE Certificate.





Installation drawing



Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors 1



Packing



Packing Quantity(PCS/CTN) 15
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 15.75







Relater products

Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors 2









Why Choose Us?



Automatic Door Magnet Holder Magnetic Hold Open Devices For Fire Doors 3



How to order?

1. Pls let us know which kind of magnetic door holder you need, the product model and your requirements.

2. We reply to you about the specifications and usage about our products.

3. After discussion, we make a deal.

4. Once the order is confirmed, please pay it soon.

5. The goods will be sent in 3-5 days after the payment.

6. OEM/ODM is welcome.

Payment:

TT, , Paypal

Delivery:

DHL, Fedex, UPS, EMS, etc, by air or by sea

We will provide you the tracking number once the goods sent, and track it until you receive the package.

After-sales service:

1. Best quality and service for all the orders, no matter big or small order.

2. 1 year warranty.

3. Please feel free to contact us if any problem you met.

4. We will provide resolution methods for you.
